Leisure TravelPatrol DutyWater Sports
Agile & Efficient · Multi-Purpose

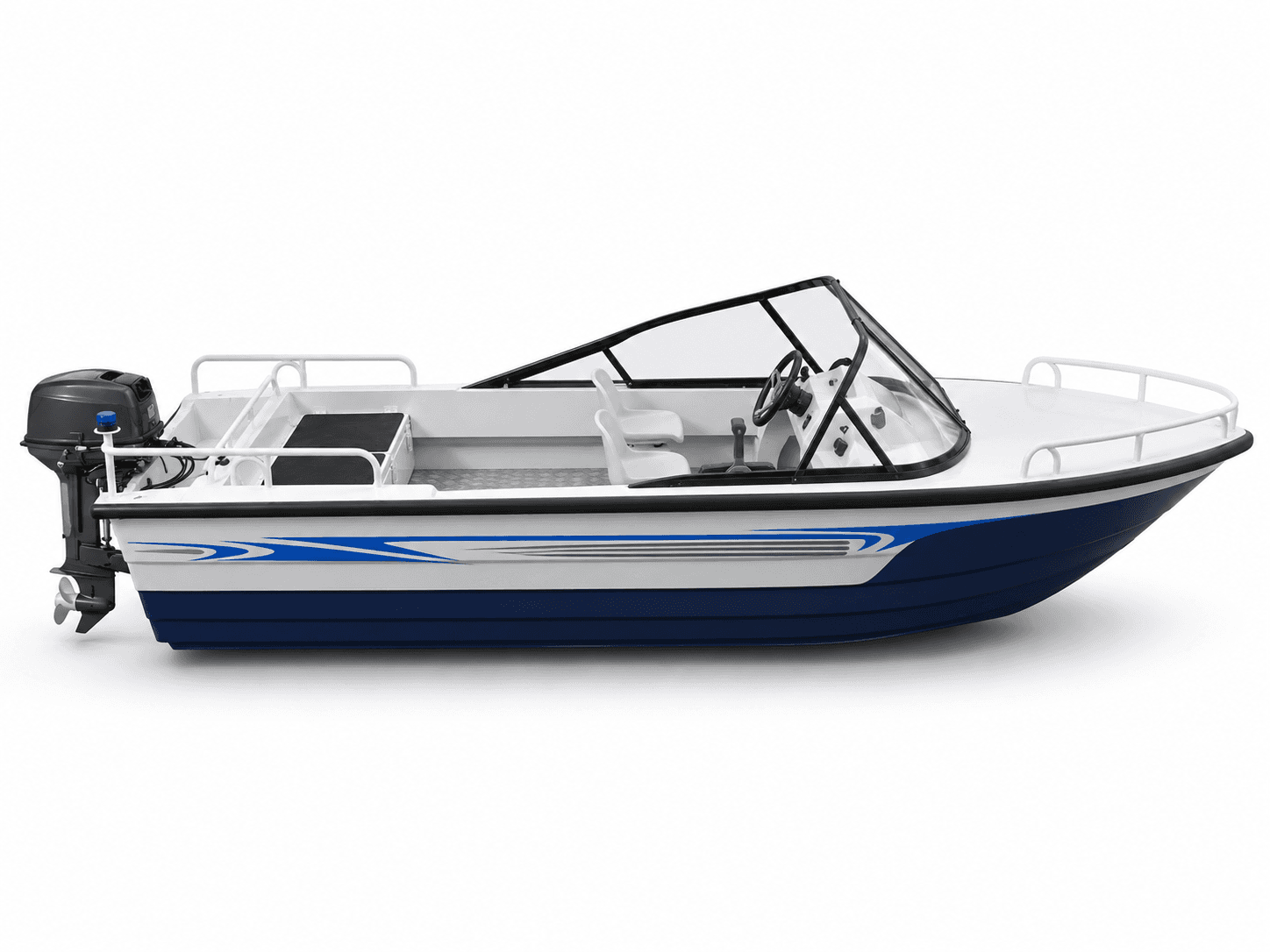

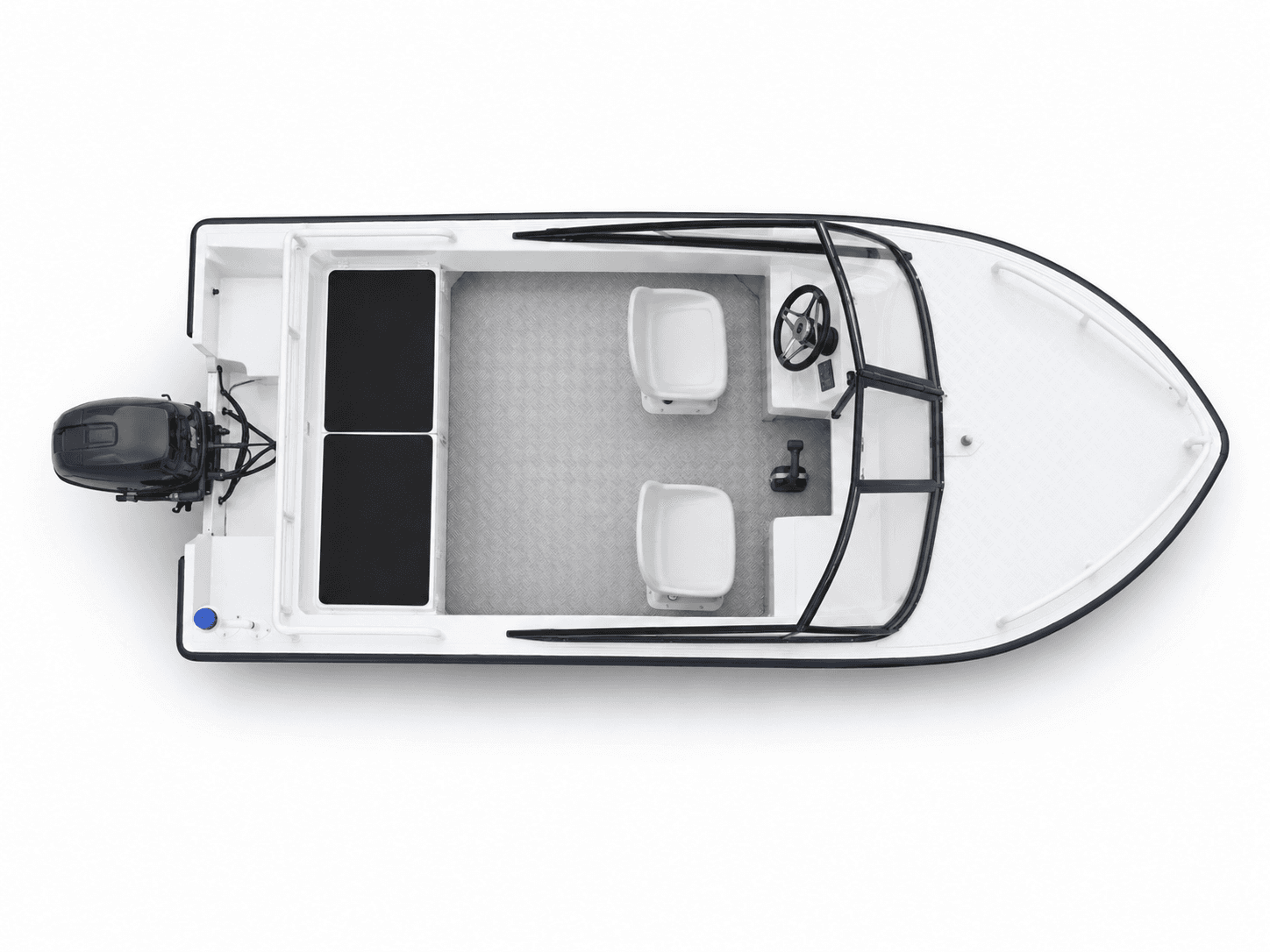

AL390 Speedboat
The AL390 is a high-performance aluminum small speedboat with a compact design and agile handling, ideal for leisure travel, patrol duty, and water sports. The hull is made of premium aluminum alloy, balancing lightweight construction with structural strength.
Nominal Length
3.90 m
Capacity
4 persons
Power
20–40 HP
Speed
≈20 kn
Specifications
- Hull Length
- 3.90 m
- Beam
- 1.63 m
- Hull Depth
- 0.65 m
- Bottom Plate Thickness
- 2.5 mm
- Side Plate Thickness
- 2.5 mm
- Transom Thickness
- 2.5 mm
- Capacity
- 4 persons
- Draft
- 0.3 m
- Power
- 20–40 HP
- Displacement
- 0.88 t
- Speed
- ≈20 kn
- Hull Material
- Aluminum Alloy（5052）
Structural Features
- All-aluminum welded structure, corrosion-resistant and durable
- Deep-V hull design for excellent seaworthiness and stability
- Modular seating layout, flexible configuration
- Optional sunshade, storage box, trailer frame accessories
- Low maintenance cost, ideal for high-frequency use
Gallery
