Patrol DutyEmergency RescuePort Management
All-Weather · Multi-Functional · High Seaworthiness

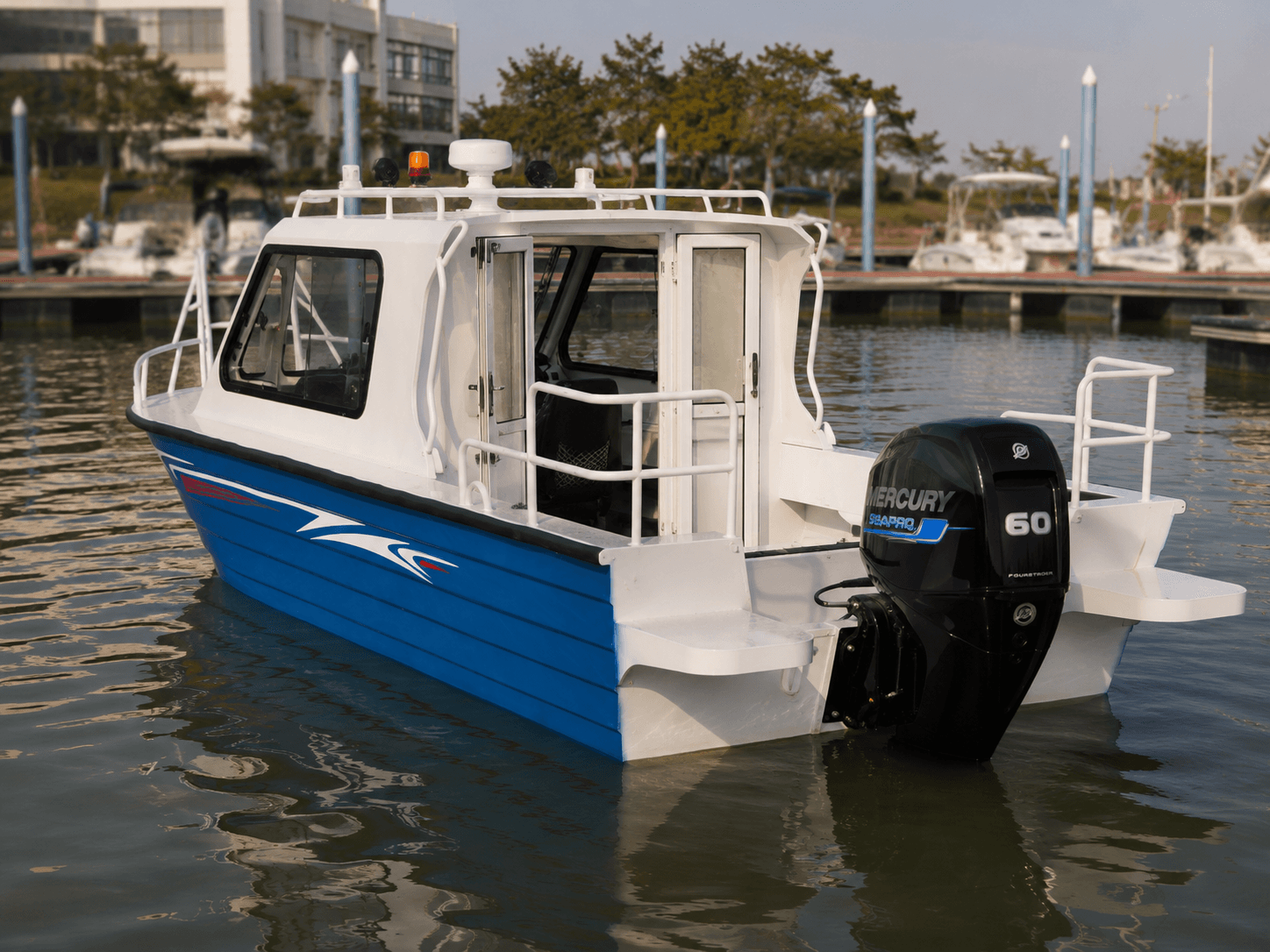

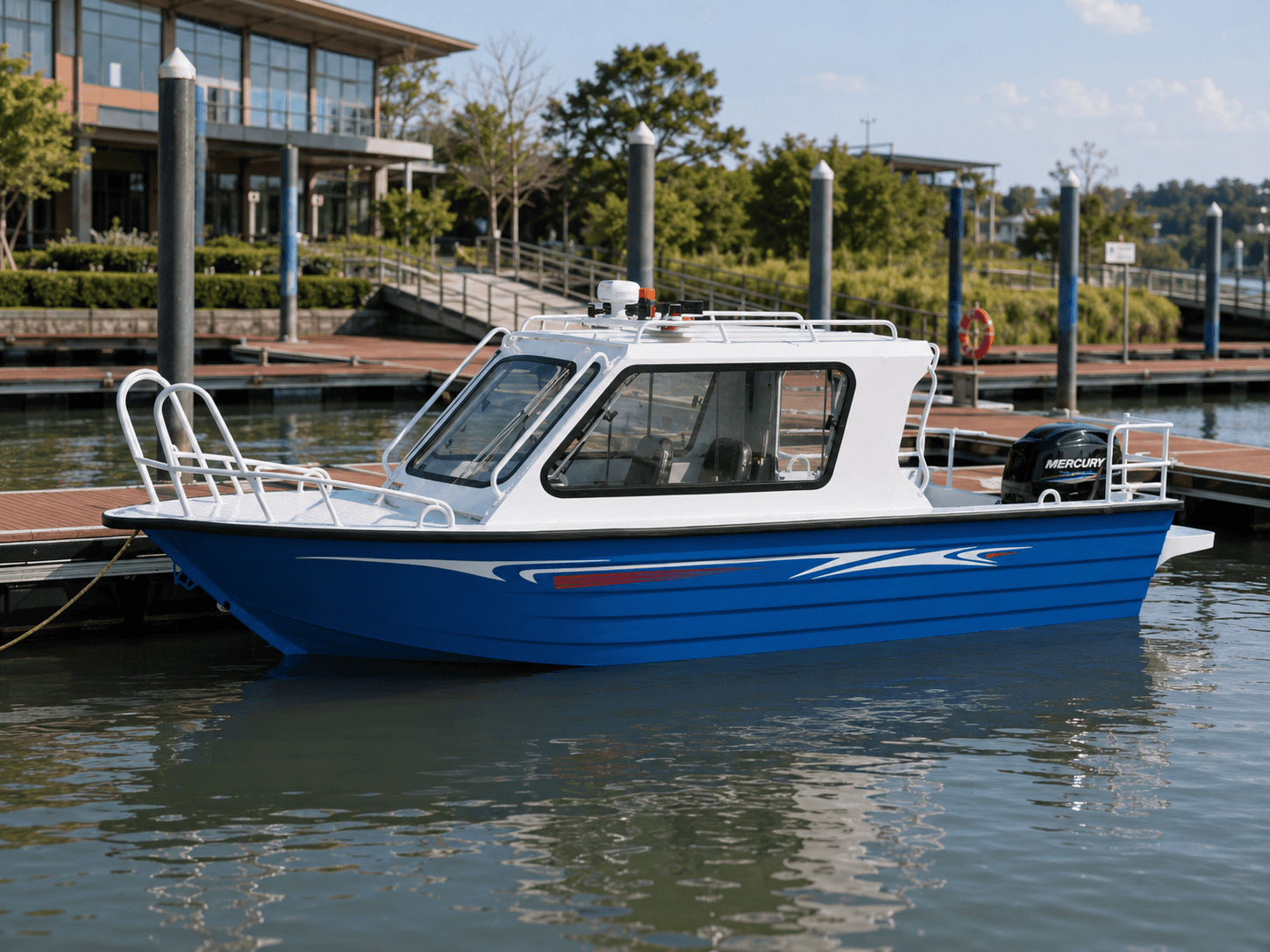

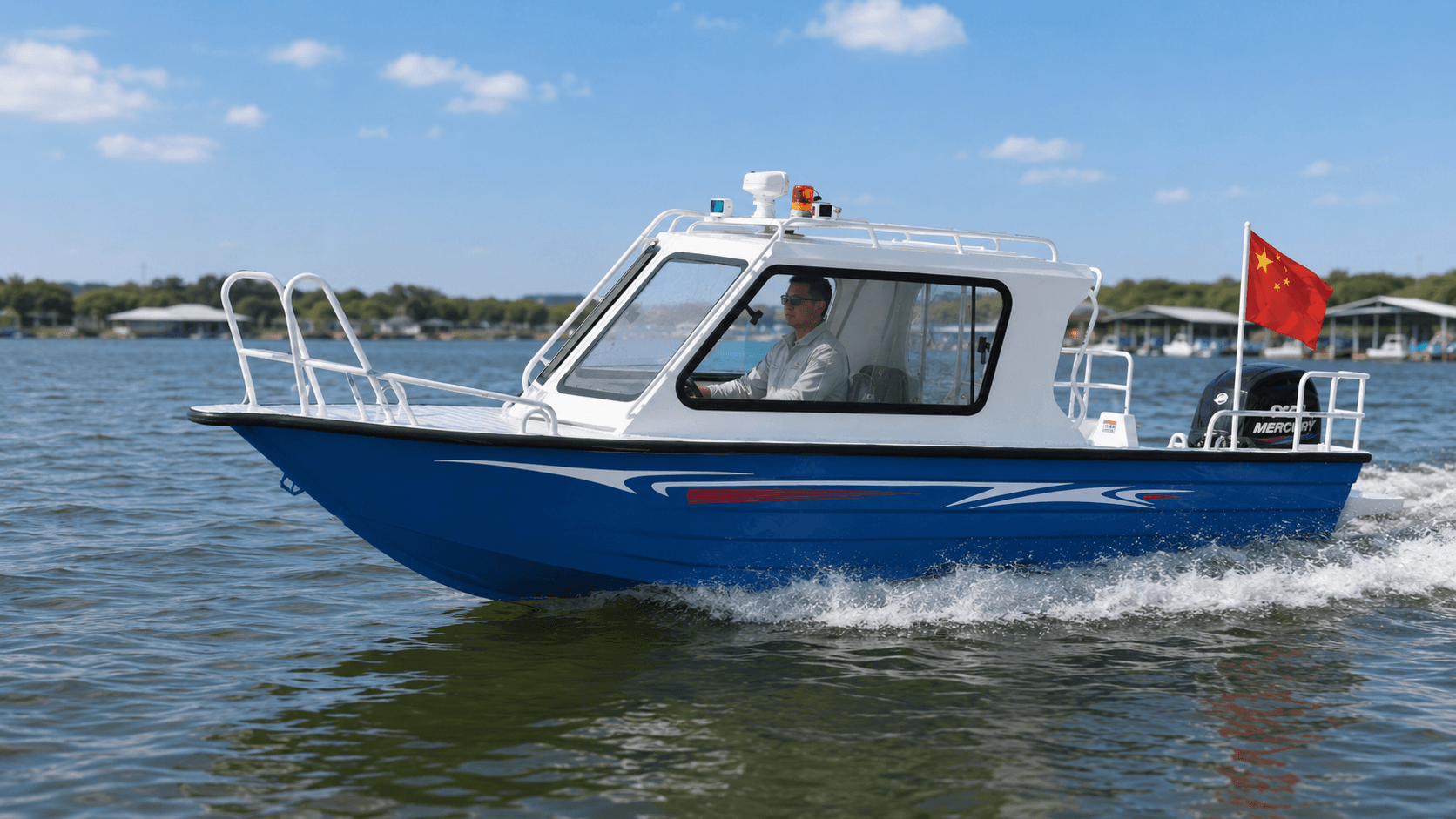

AL530B Half-Cabin Boat
The AL530B aluminum half-cabin boat features a forward console with a semi-enclosed canopy, balancing open visibility with sun and rain protection. Suitable for patrol duty, emergency rescue, and water management — a cost-effective multi-purpose vessel.
Nominal Length
5.30 m
Capacity
4 persons
Power
30–60 HP
Speed
≈20 kn
Specifications
- Hull Length
- 5.30 m
- Beam
- 1.93 m
- Hull Depth
- 0.8 m
- Bottom Plate Thickness
- 3 mm
- Side Plate Thickness
- 3 mm
- Transom Thickness
- 3 mm
- Capacity
- 4 persons
- Draft
- 0.3 m
- Power
- 30–60 HP
- Displacement
- 1.65 t
- Speed
- ≈20 kn
- Hull Material
- Aluminum Alloy（5052）
Structural Features

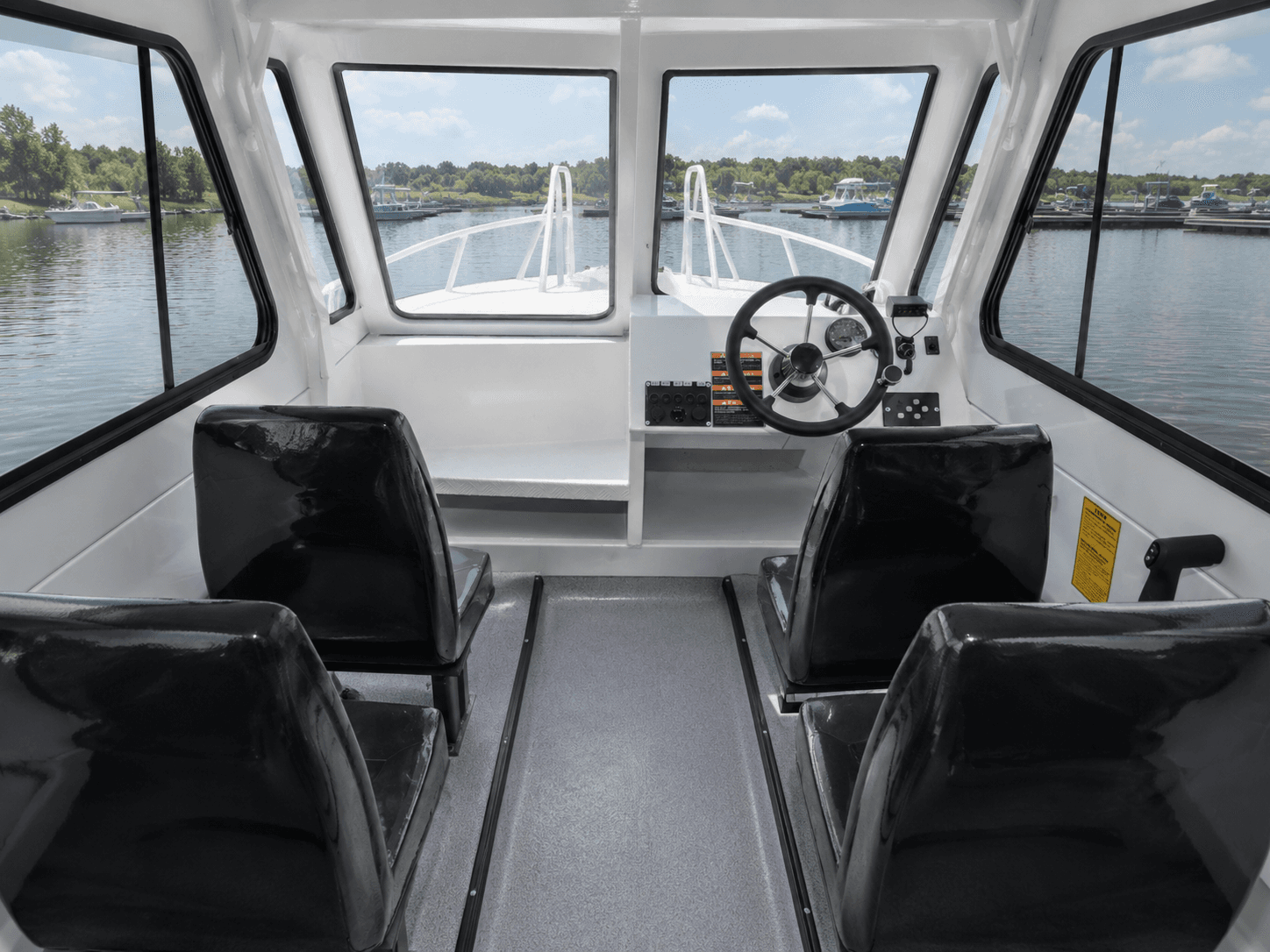

- Semi-enclosed helm station for all-weather operation
- Reinforced hull structure for intensive use
- Spacious aft deck for personnel and equipment
- Optional police lights, siren, communication equipment
- Low fuel consumption, long endurance for extended duty
Gallery
