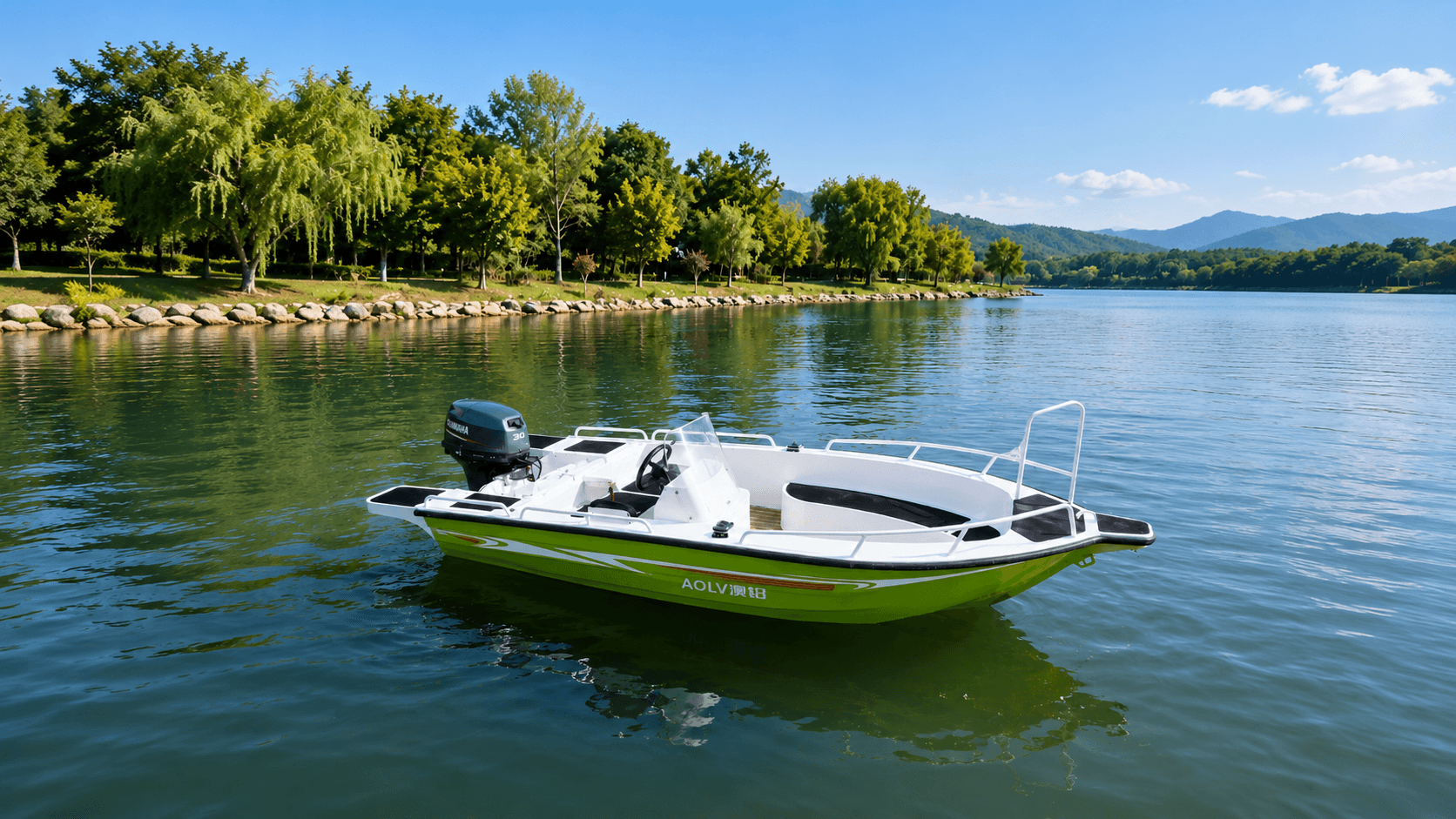

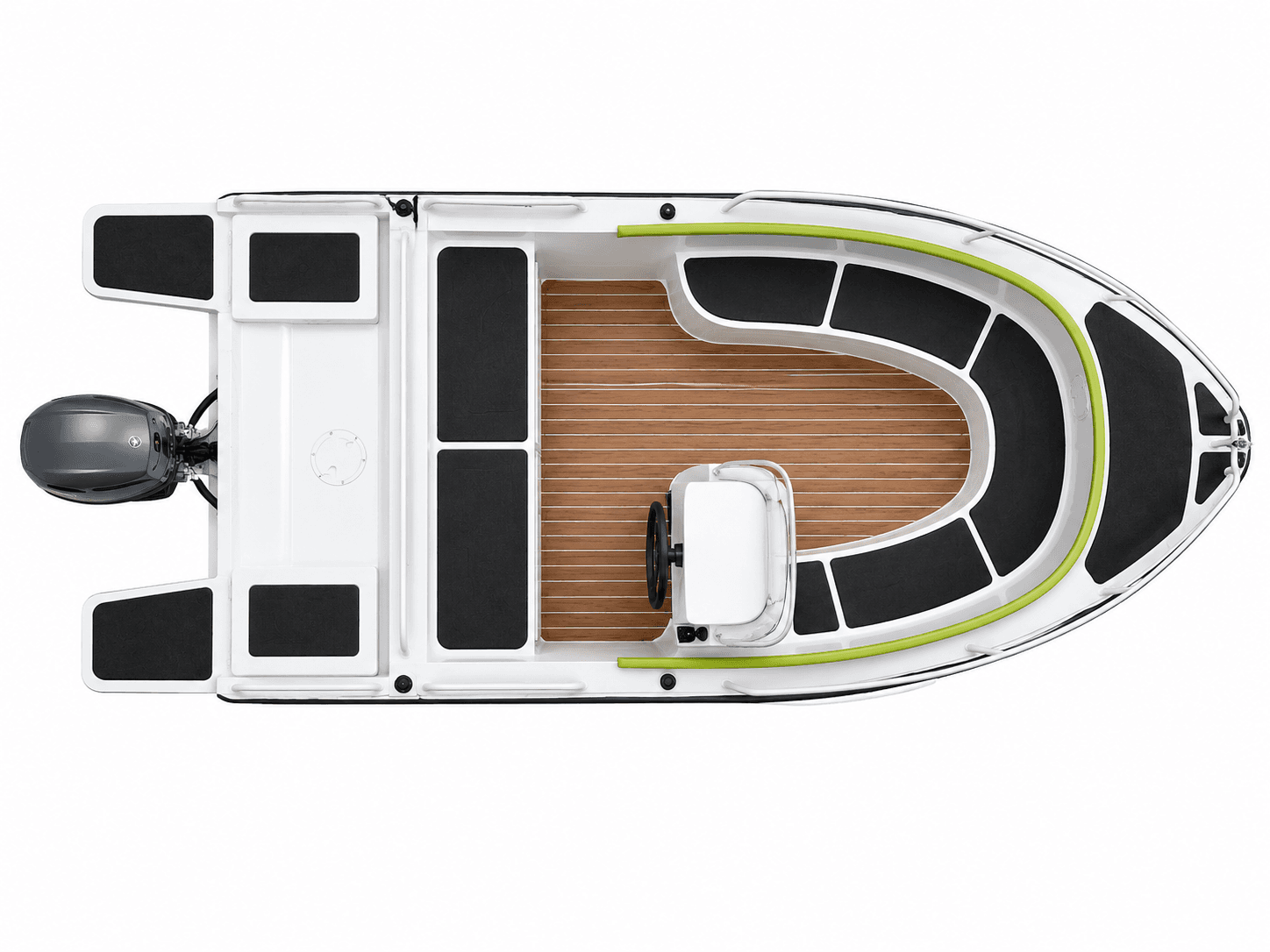

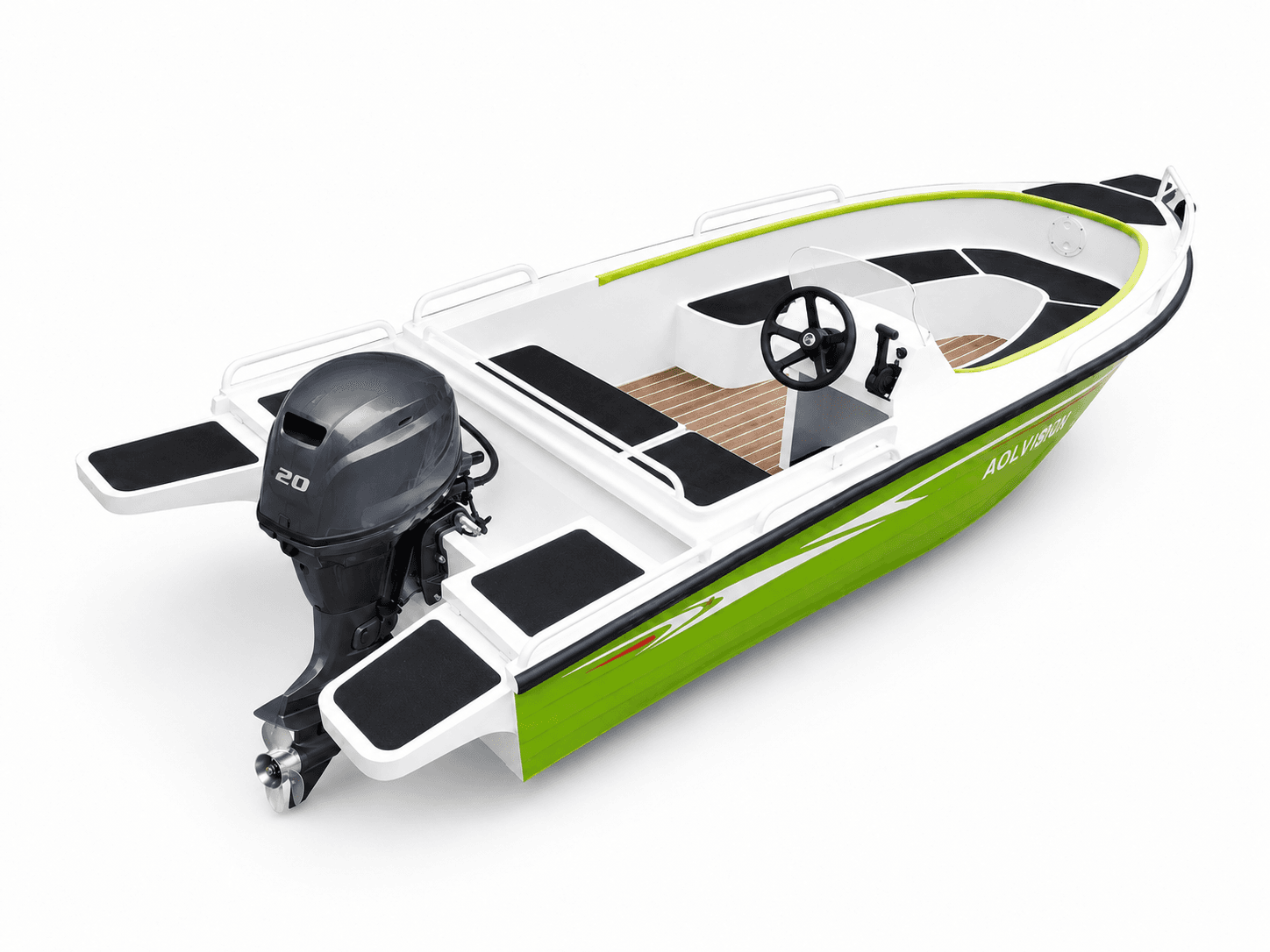

AL420YD Fishing Boat
The AL420YD is an aluminum fishing and leisure boat designed for angling and water recreation. Equipped with live wells, rod holders, and fish finder mounting positions, it also meets the comfort needs of family outings.
Nominal Length
4.20 m
Capacity
5 persons
Power
20–40 HP
Speed
13.5–27 kn
Specifications
- Hull Length
- 4.20 m
- Beam
- 1.72 m
- Hull Depth
- 0.8 m
- Bottom Plate Thickness
- 2.5 mm
- Side Plate Thickness
- 2.5 mm
- Transom Thickness
- 2.5 mm
- Capacity
- 5 persons
- Draft
- 0.3 m
- Power
- 20–40 HP
- Displacement
- 0.98 t
- Speed
- 13.5–27 kn
- Hull Material
- Aluminum Alloy（5052）
Structural Features
- Professional fishing setup: live well, rod holders, tool storage
- Spacious deck for multi-person fishing
- Low-noise design to avoid disturbing fish
- Optional forward console, sunshade, T-top
- Comfortable seating for extended water activities
