AL530C Aluminum Speedboat · 5.30 m Class
AL530C Speedboat
AL530C is a 5.30 m class speedboat with a 5052 aluminum alloy hull. Manufacturer data lists a beam of 1.82 m, hull depth of 0.78 m, capacity of 8 persons and power range of 40–60 HP.
Nominal Length
5.30 m
Capacity
8 persons
Power
40–60 HP
Speed
≈20 kn
Specifications
- Hull Length
- 5.30 m
- Beam
- 1.82 m
- Hull Depth
- 0.78 m
- Bottom Plate Thickness
- 3 mm
- Side Plate Thickness
- 3 mm
- Transom Thickness
- 3 mm
- Capacity
- 8 persons
- Draft
- 0.3 m
- Power
- 40–60 HP
- Displacement
- 1.27 t
- Speed
- ≈20 kn
- Hull Material
- Aluminum Alloy（5052）
Structural Features
- 5052 aluminum alloy hull
- Nominal length 5.30 m and beam 1.82 m
- Manufacturer data lists capacity of 8 persons
- Power range of 40–60 HP

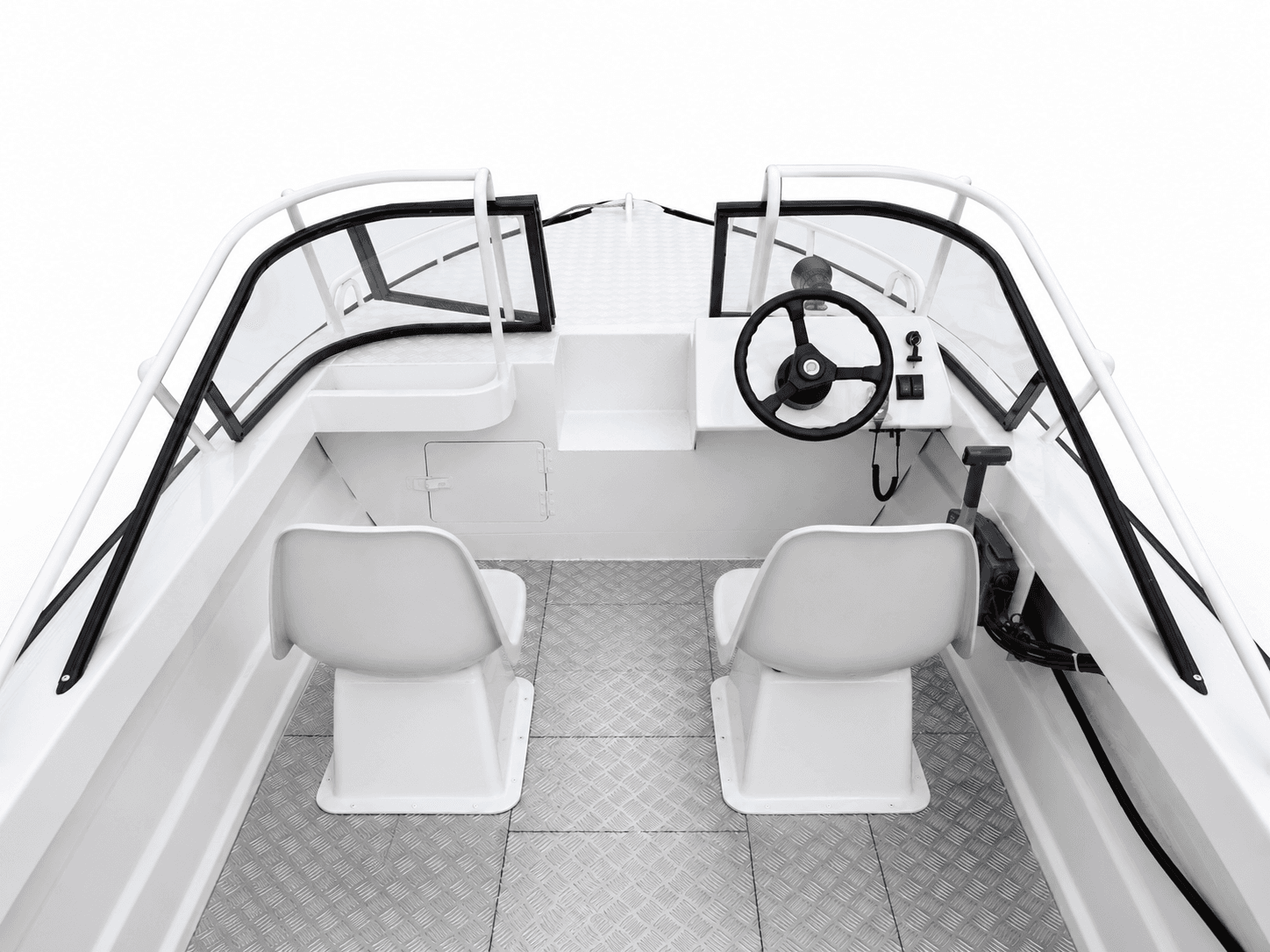

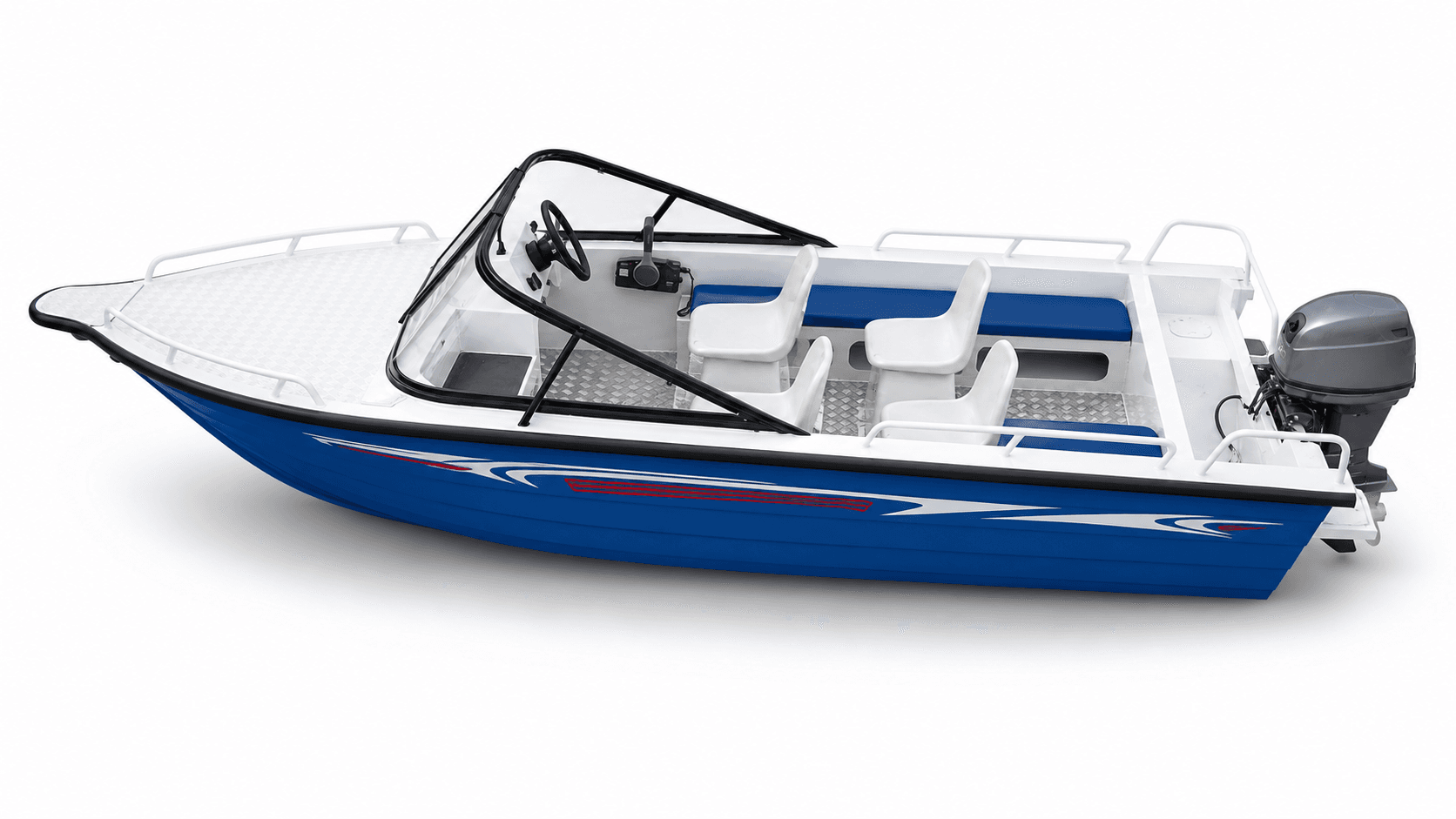

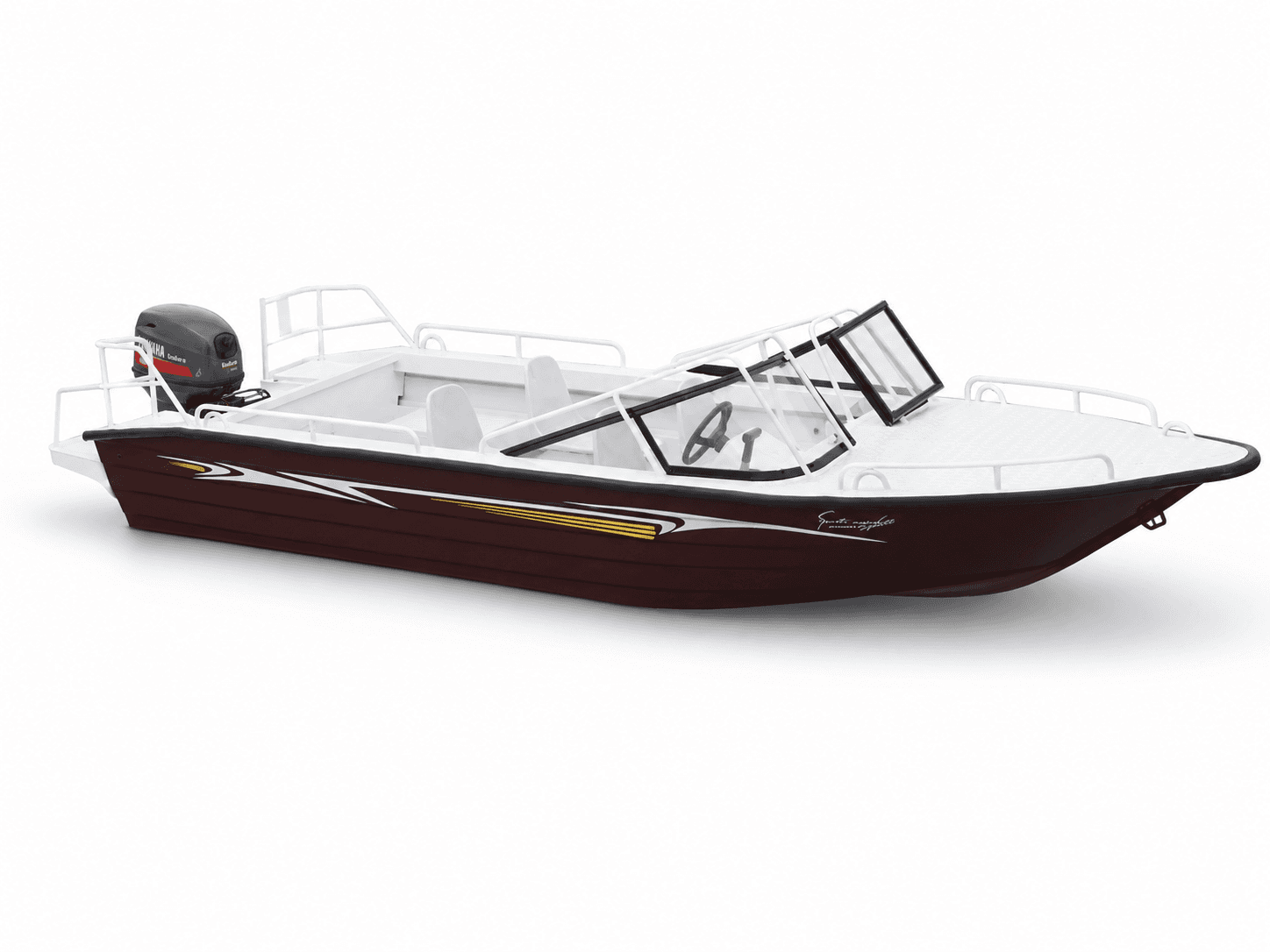

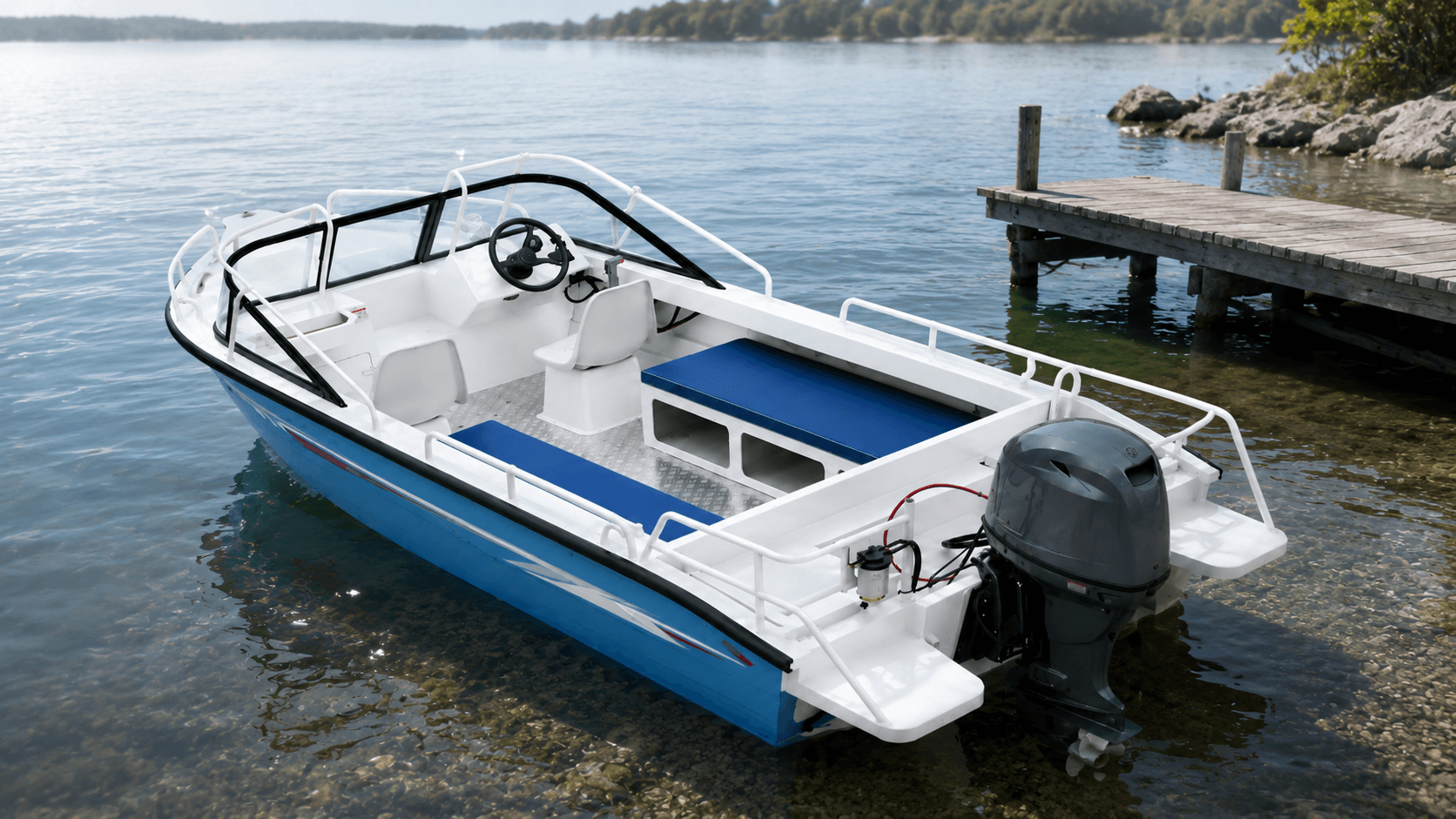

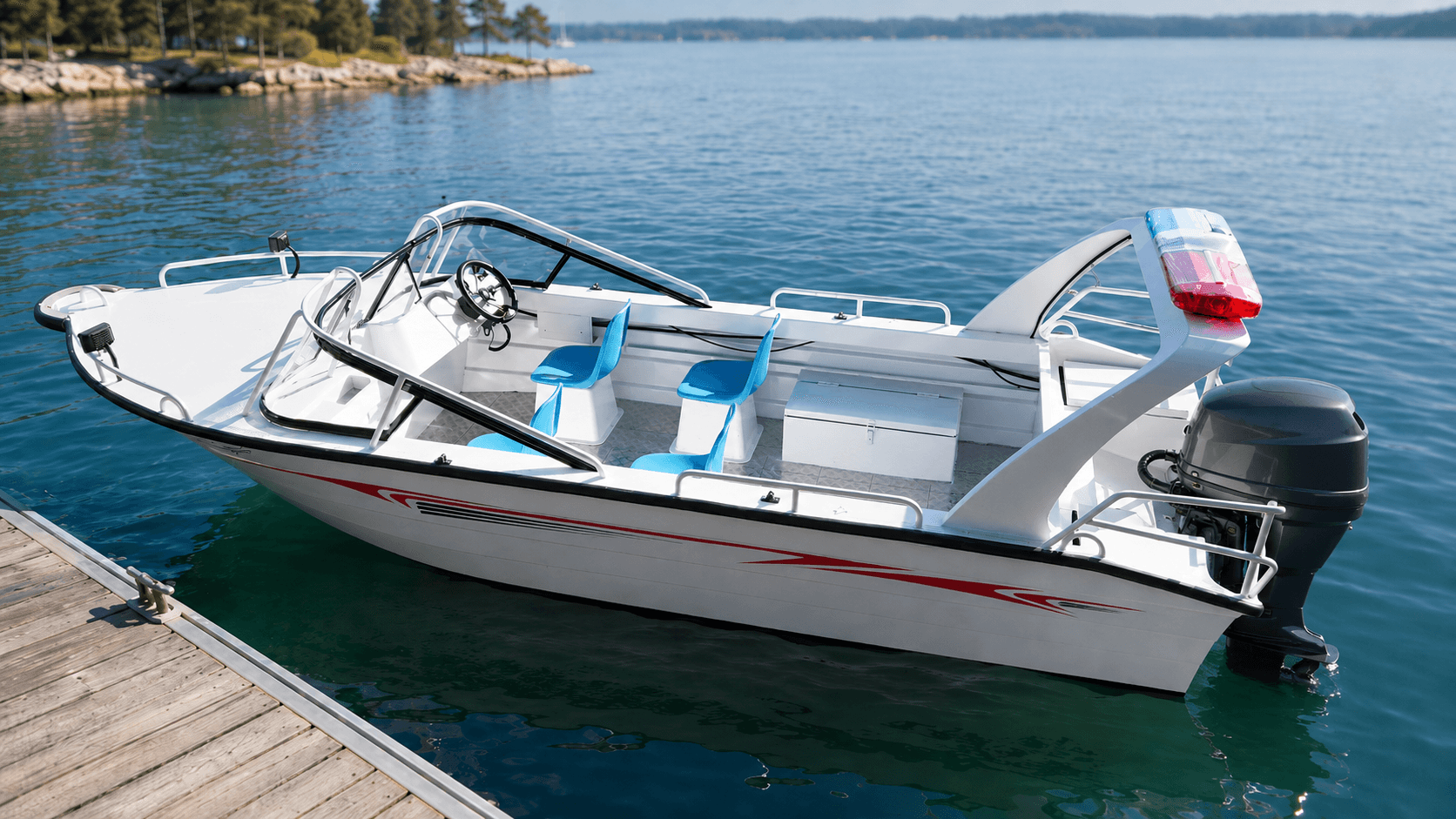

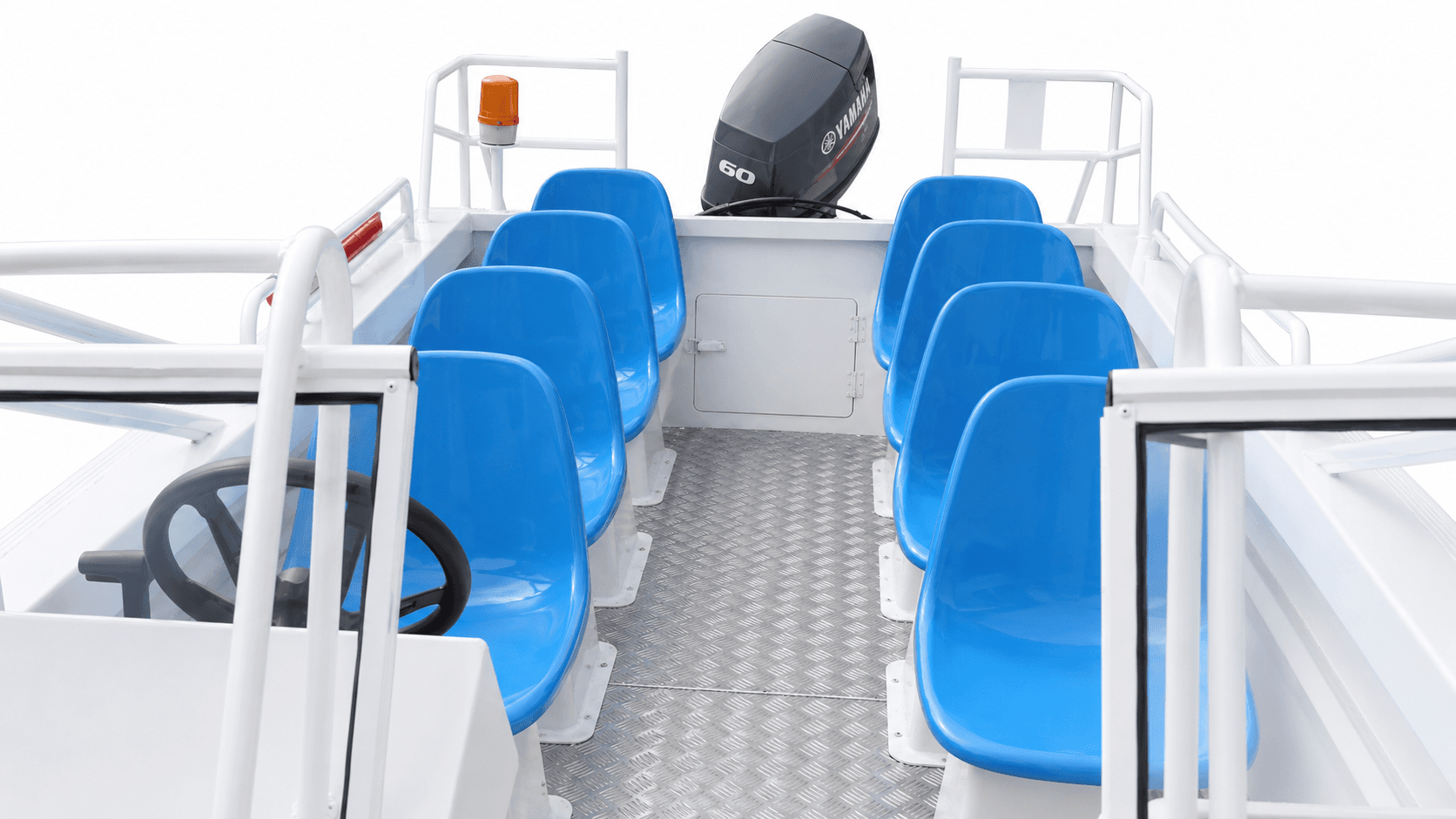

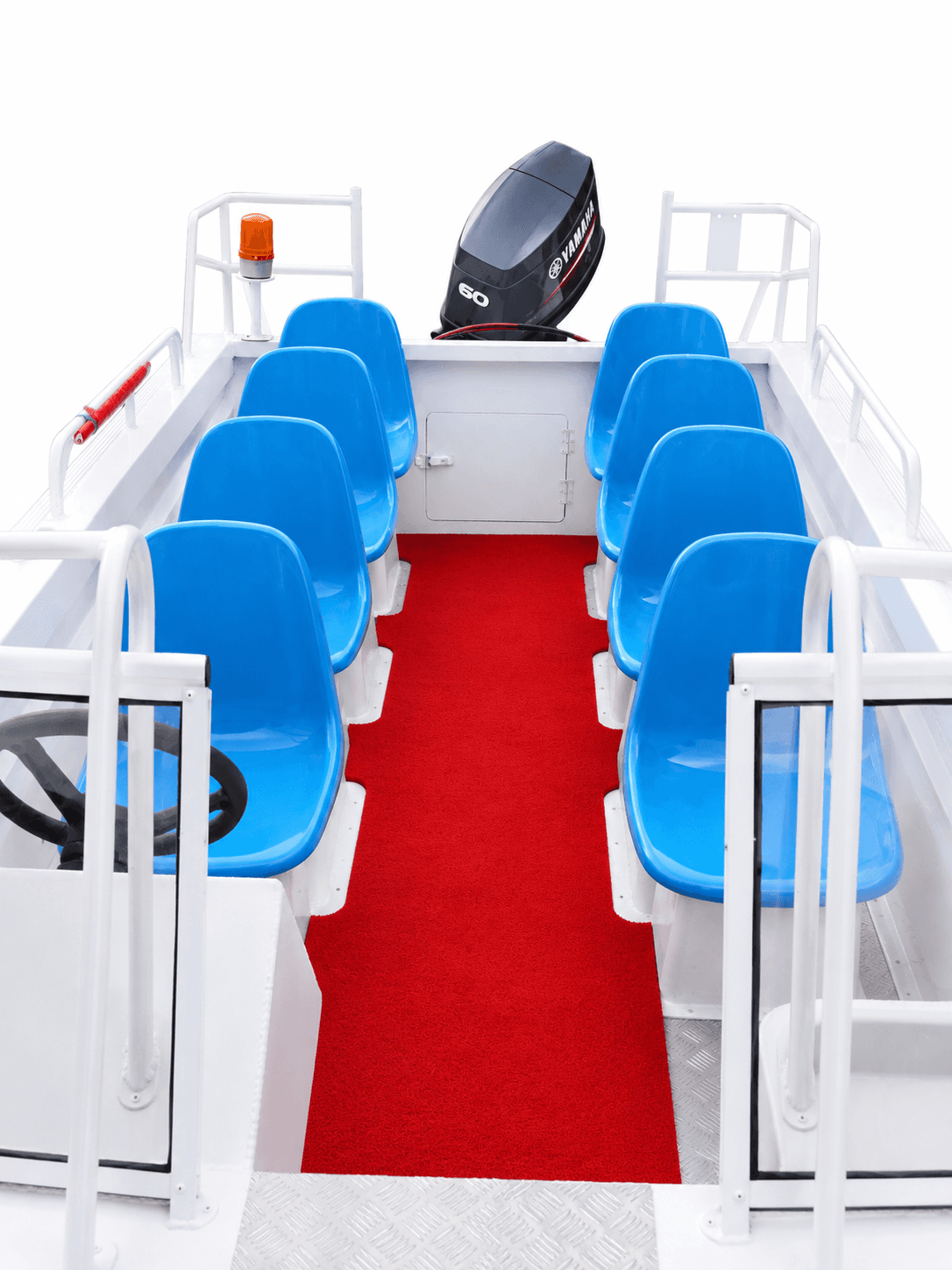

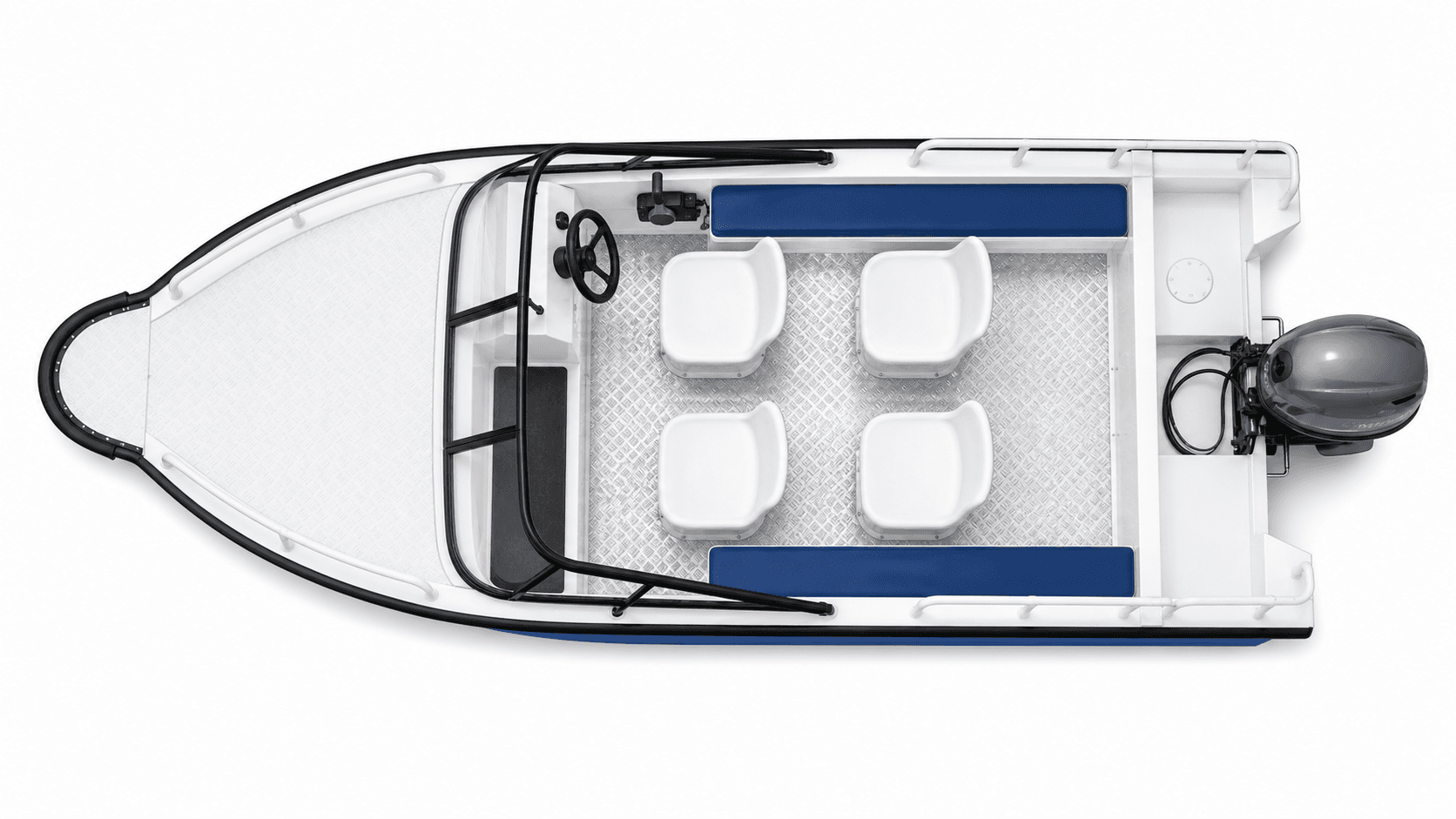

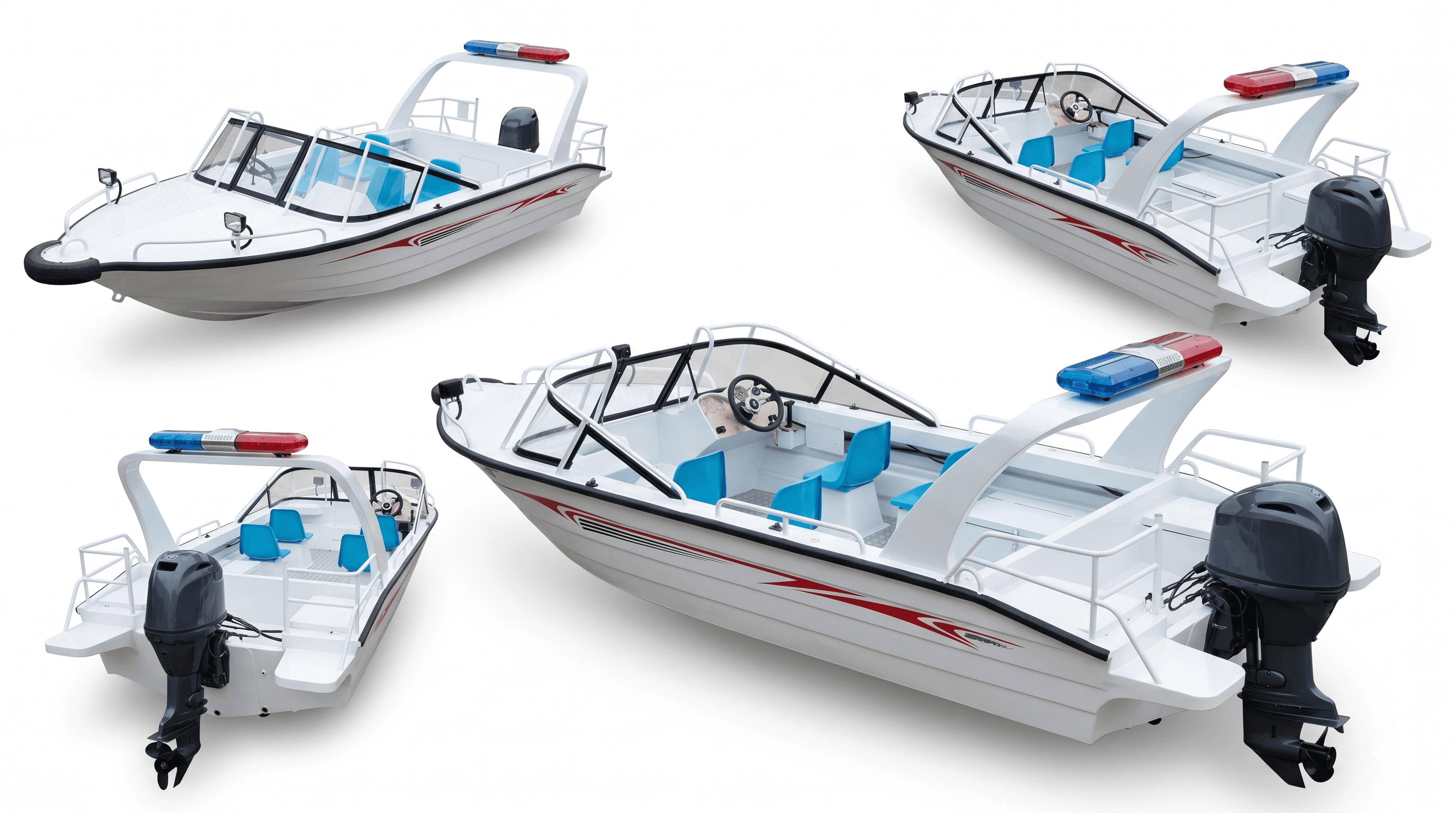

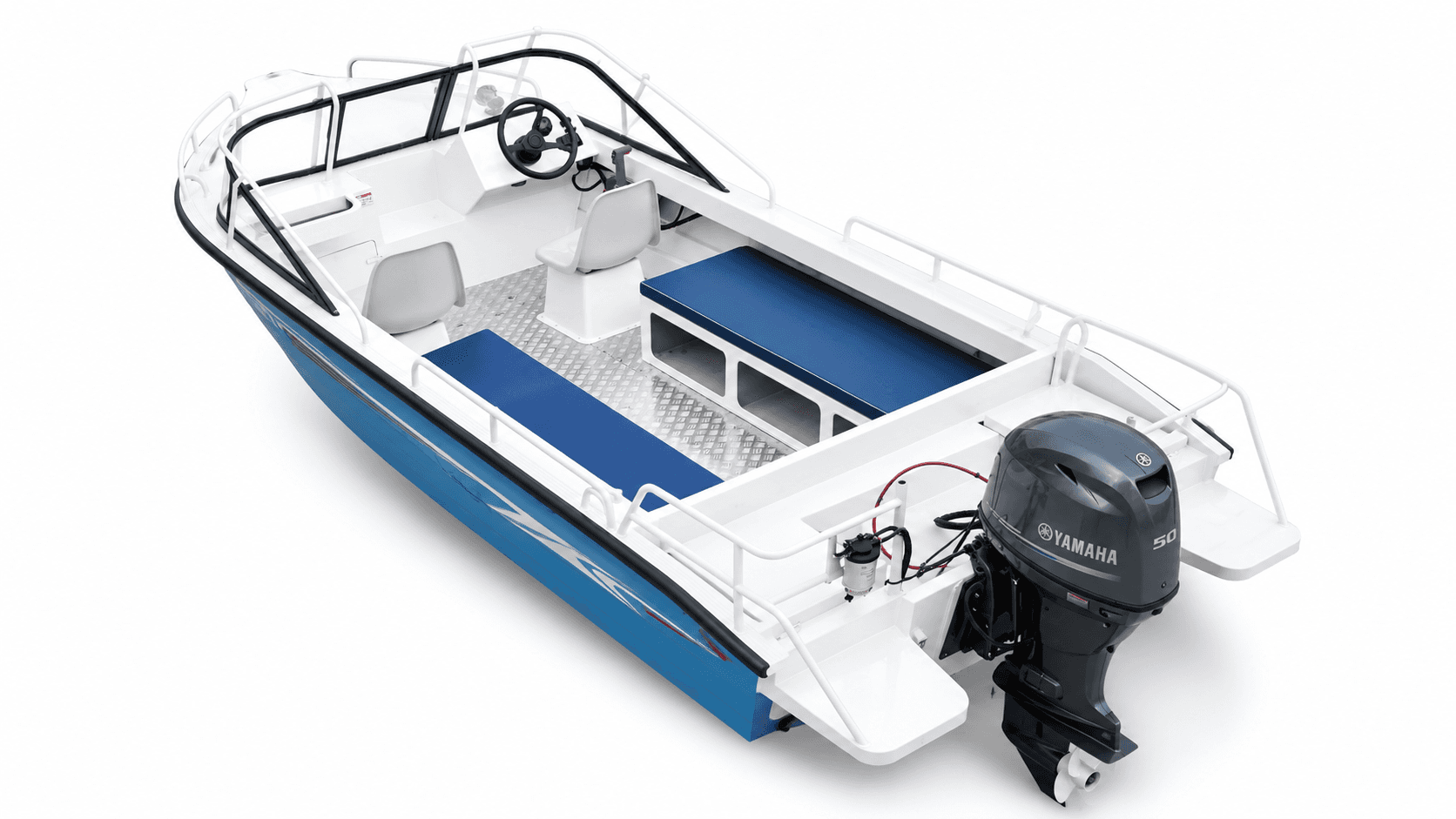

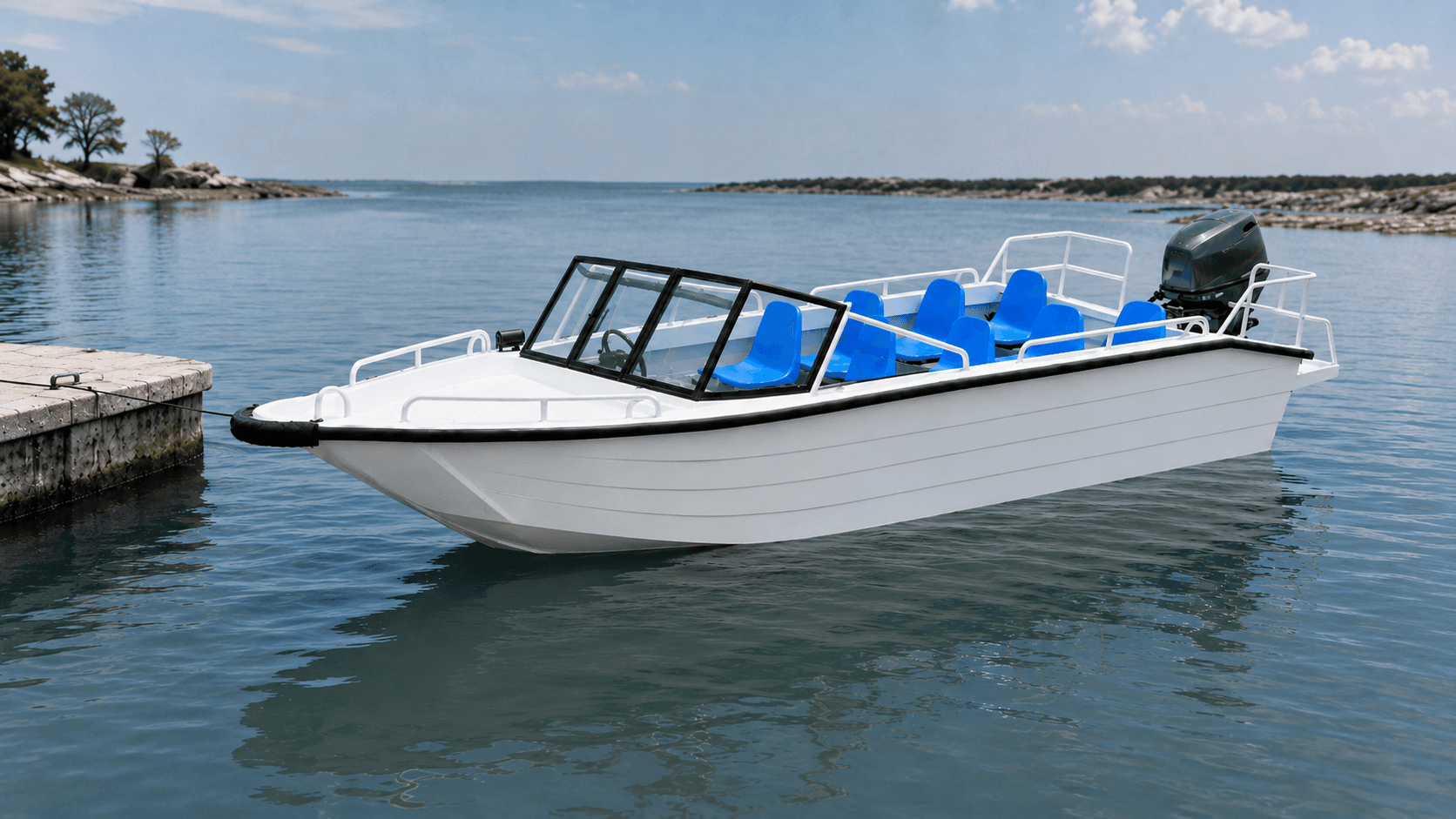

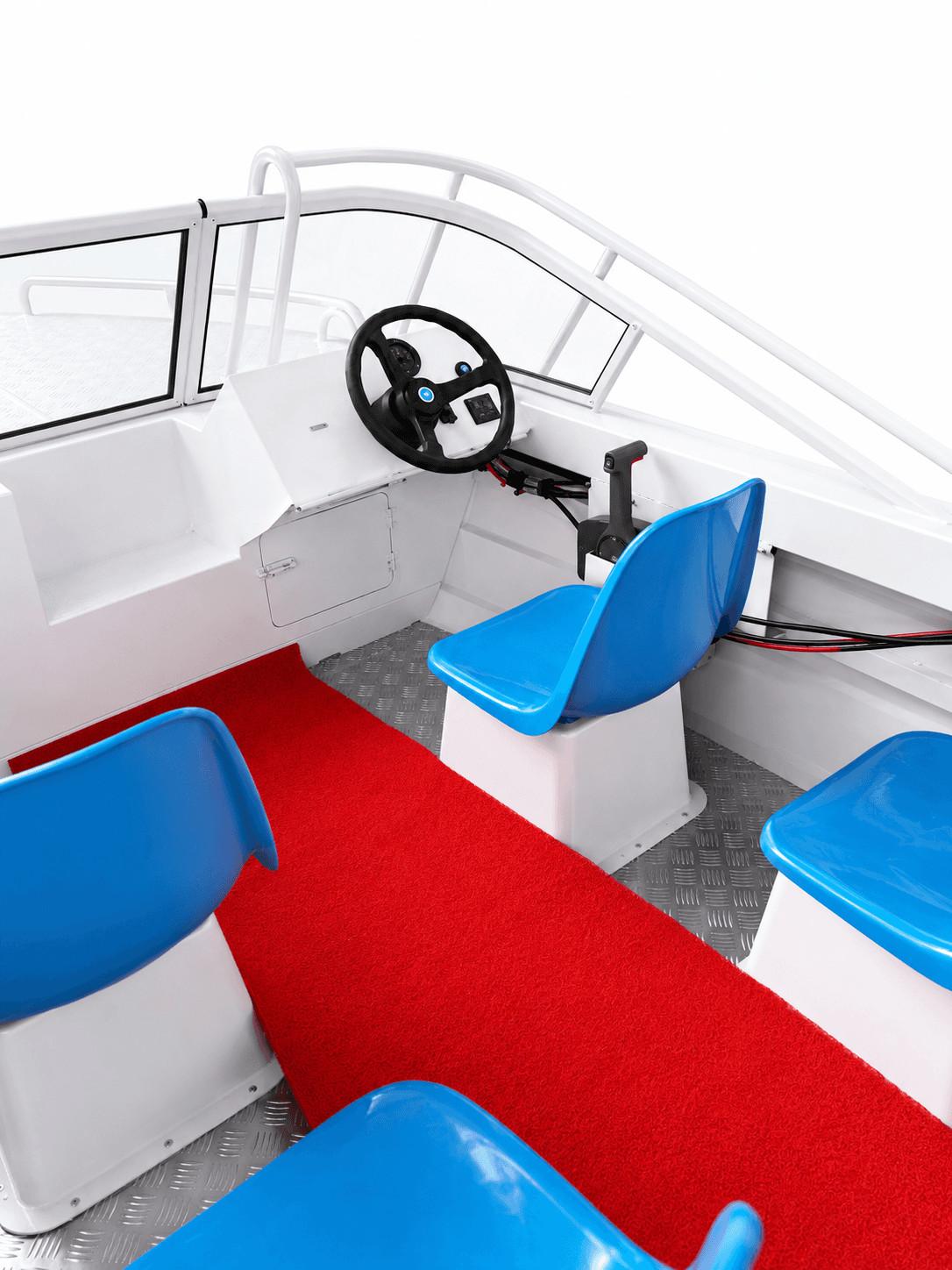

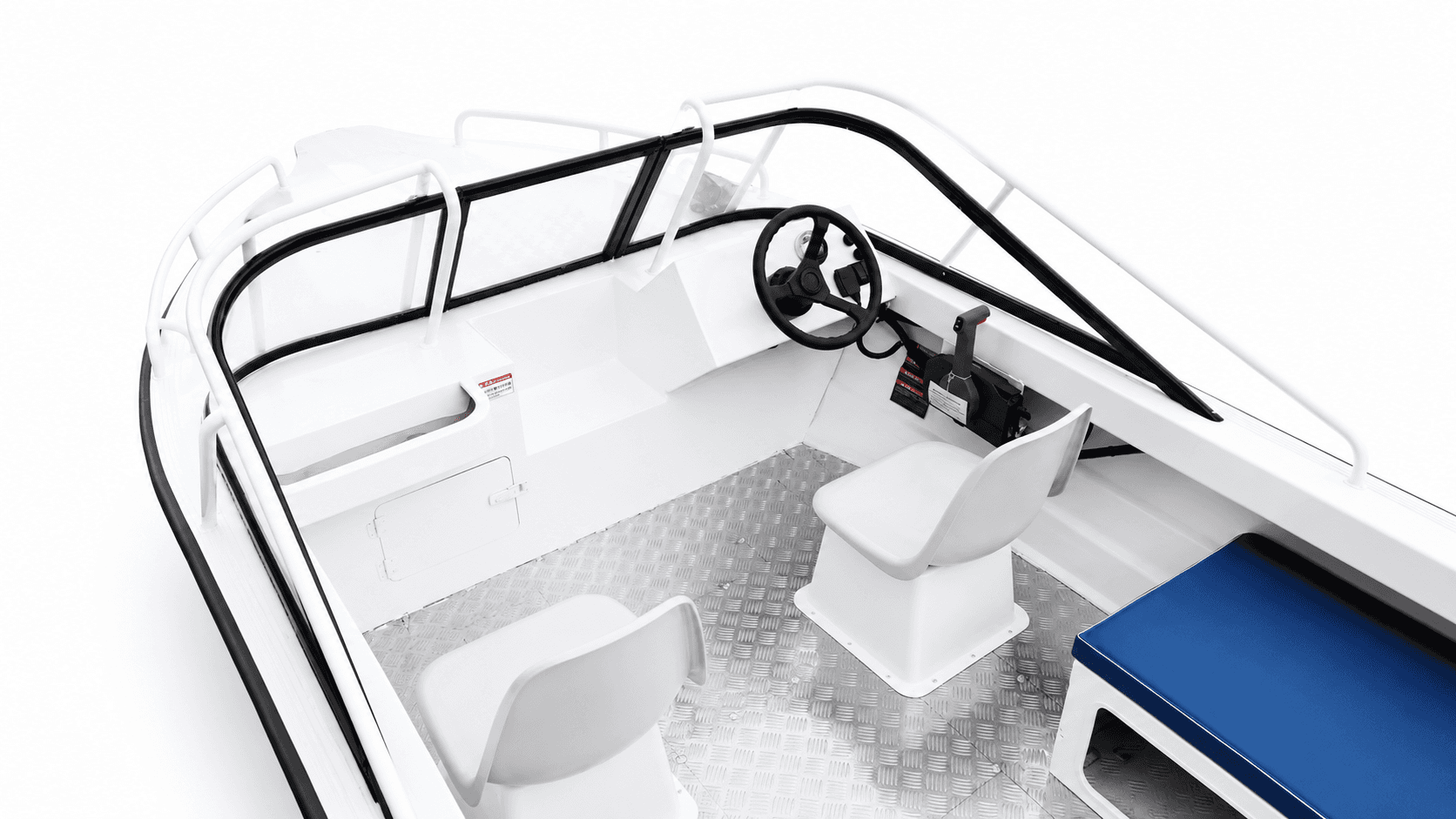

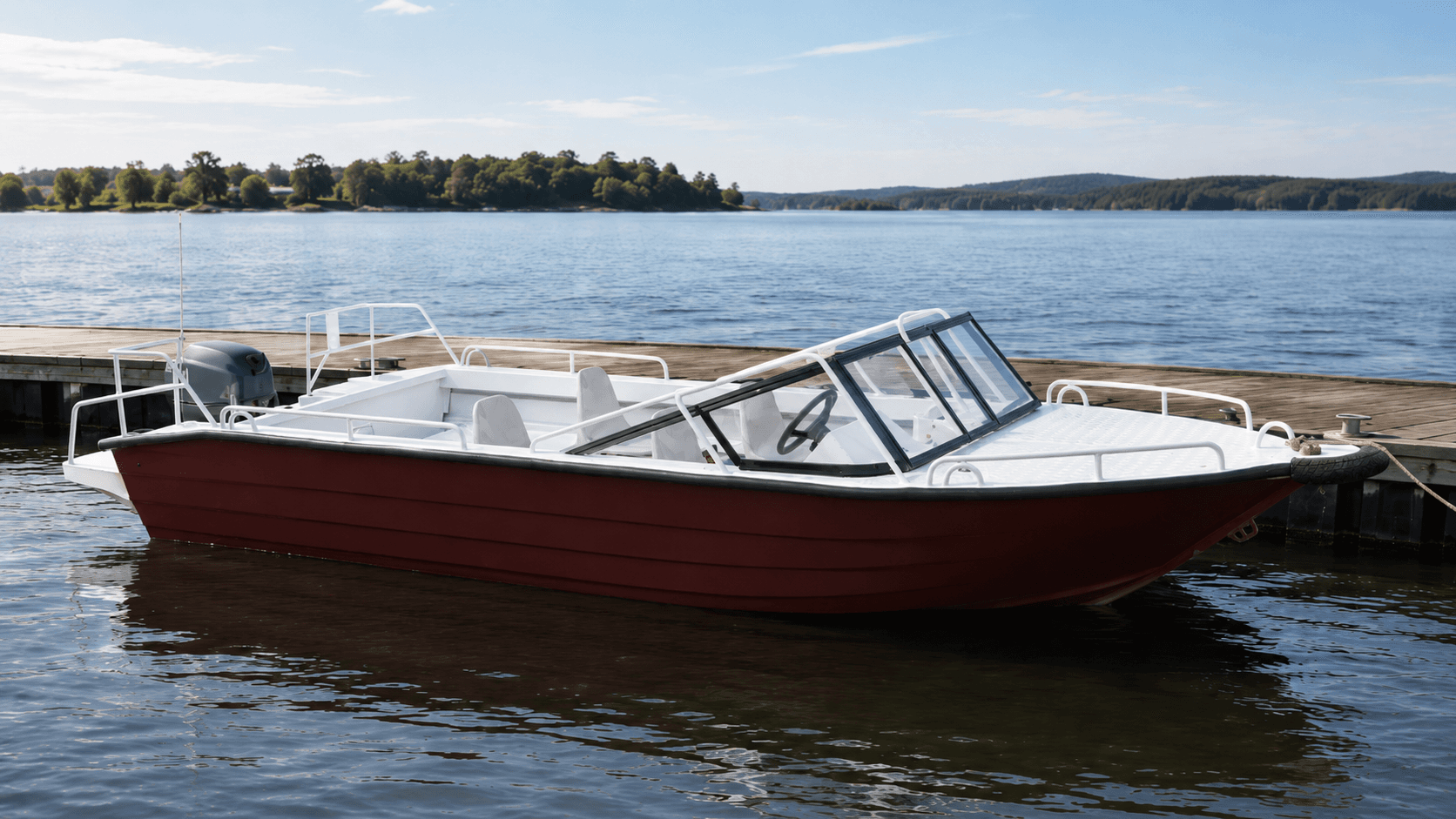

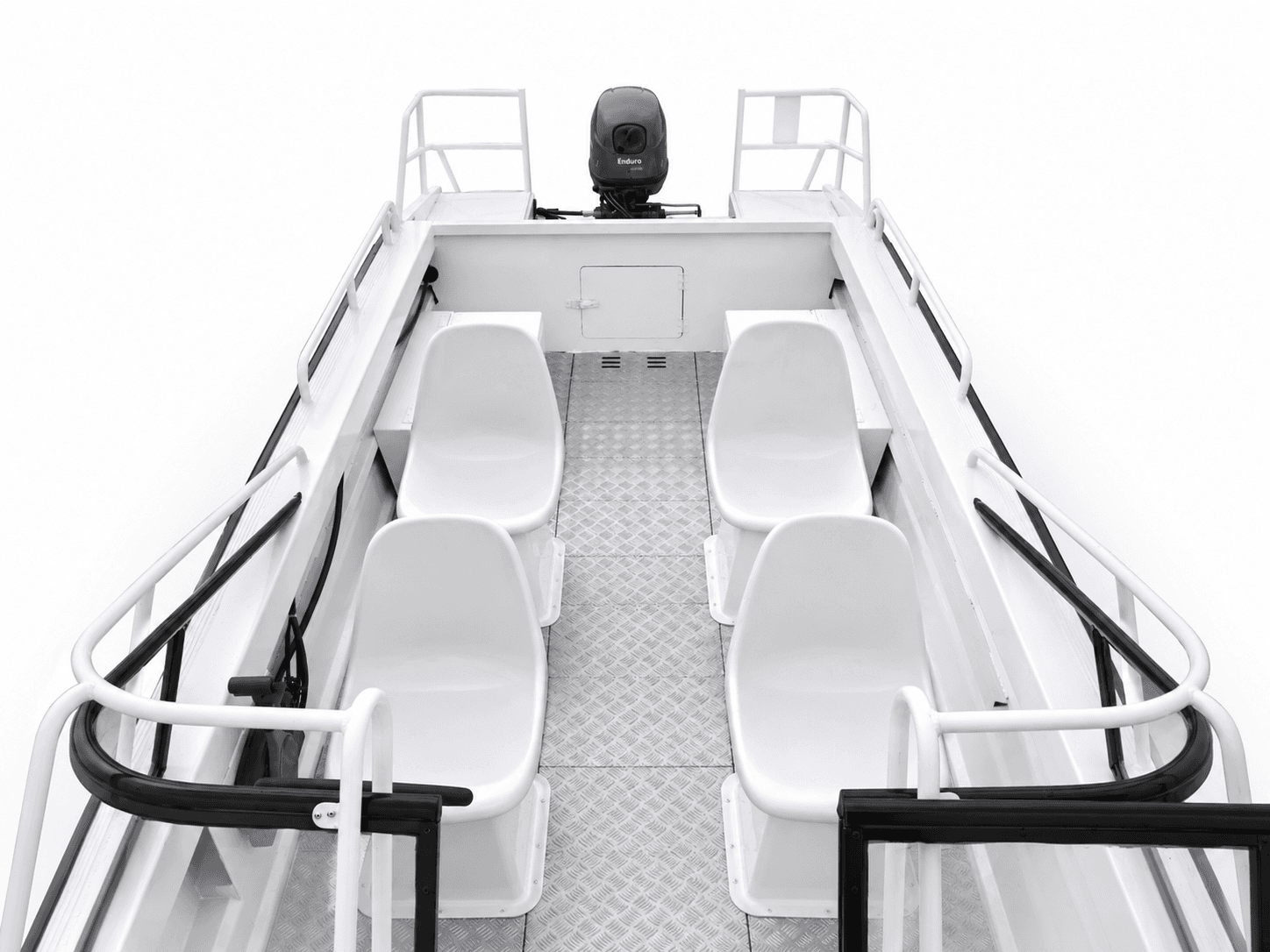

Gallery
