Large Capacity · Strong Power · Multi-Functional
AL650Q Full-Cabin Boat
The AL650Q is a high-performance aluminum cabin boat combining high-speed cruising with multi-mission capability. Its spacious cabin and powerful engine make it an ideal platform for patrol, crew transport, and port operations.
Nominal Length
6.50 m
Capacity
8 persons
Power
90–150 HP
Speed
17–25 kn
Specifications
- Hull Length
- 6.50 m
- Beam
- 2.28 m
- Hull Depth
- 0.98 m
- Bottom Plate Thickness
- 4 mm
- Side Plate Thickness
- 3 mm
- Transom Thickness
- 4 mm
- Capacity
- 8 persons
- Draft
- 0.3 m
- Power
- 90–150 HP
- Displacement
- 2.68 t
- Speed
- 17–25 kn
- Hull Material
- Aluminum Alloy（5052）
Structural Features
- All-aluminum deep-V hull, high strength, lightweight, corrosion-resistant
- High-power outboard engine, ample power
- Spacious cabin for multiple personnel
- Optional police lights, siren, communication & navigation systems
- Reinforced hull bottom for frequent docking
- Modular deck layout for quick mission reconfiguration

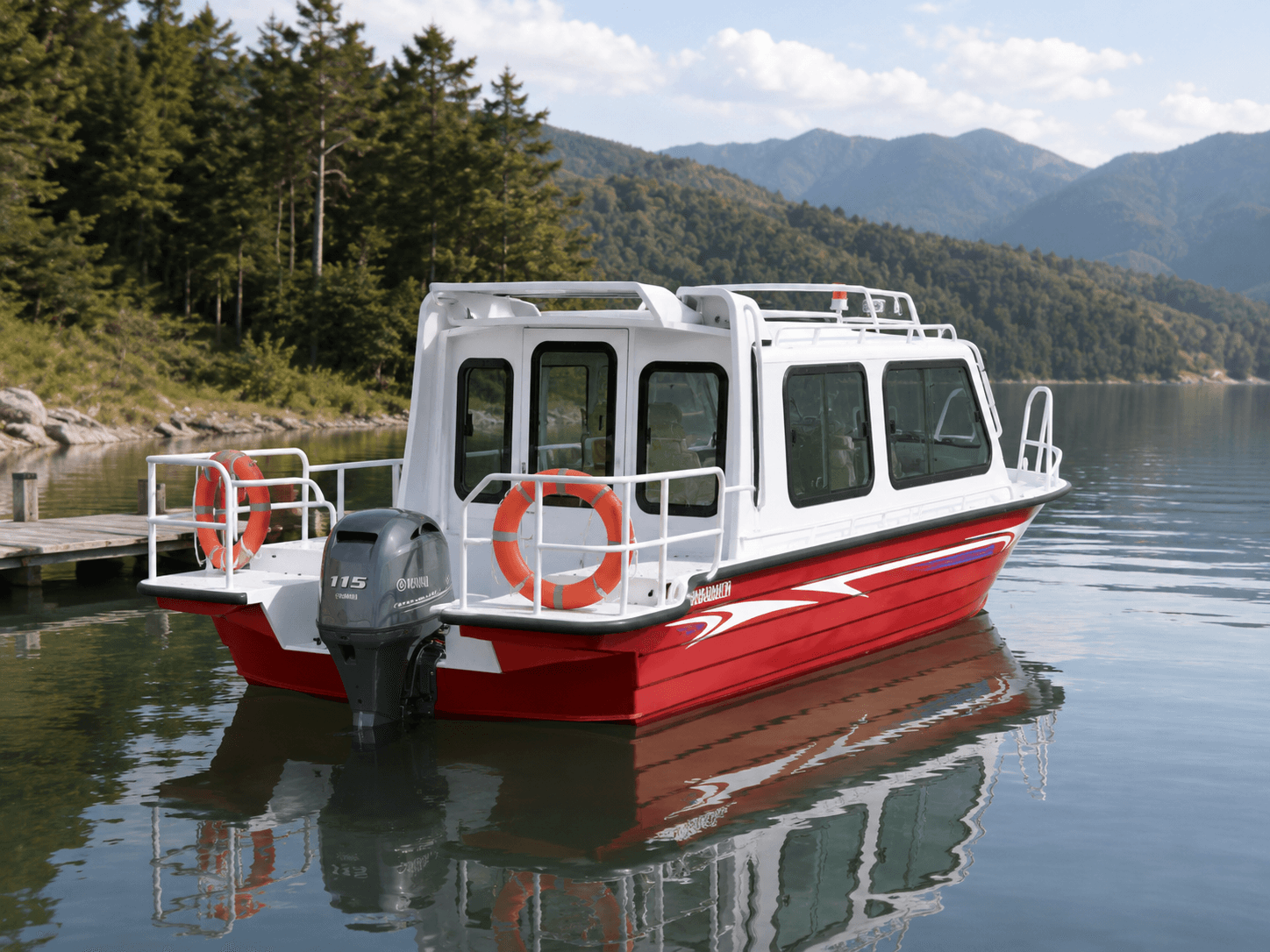

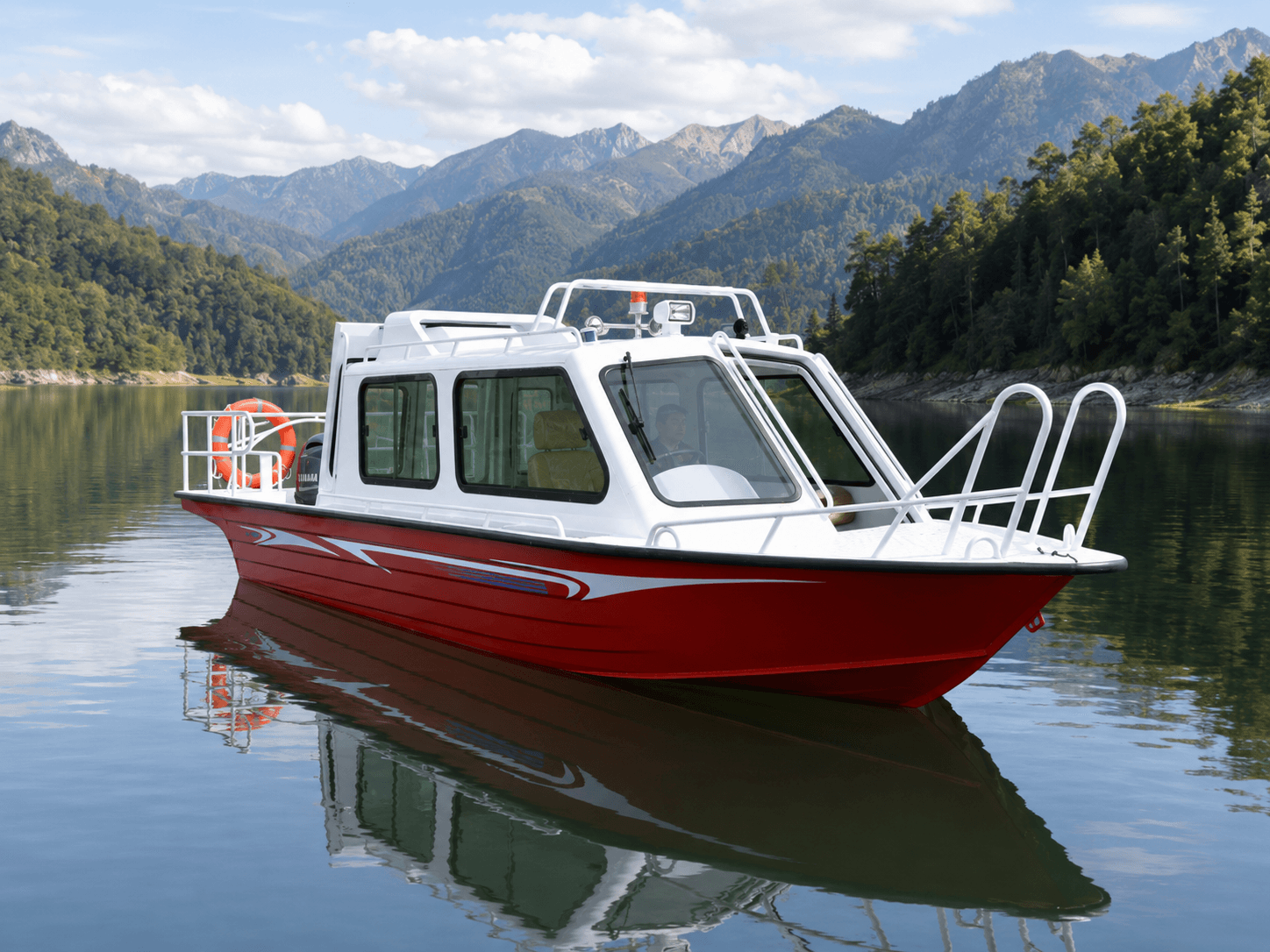

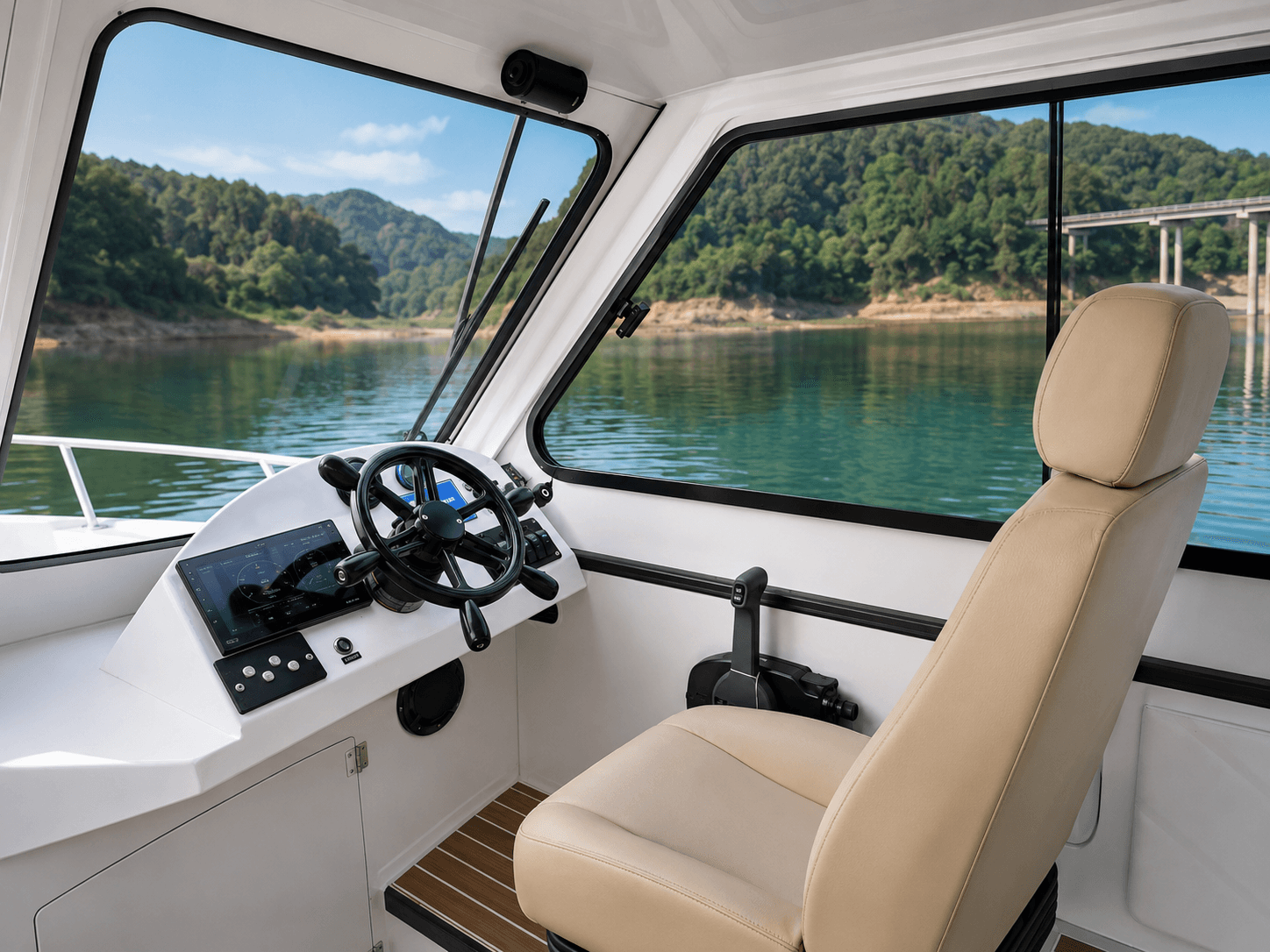

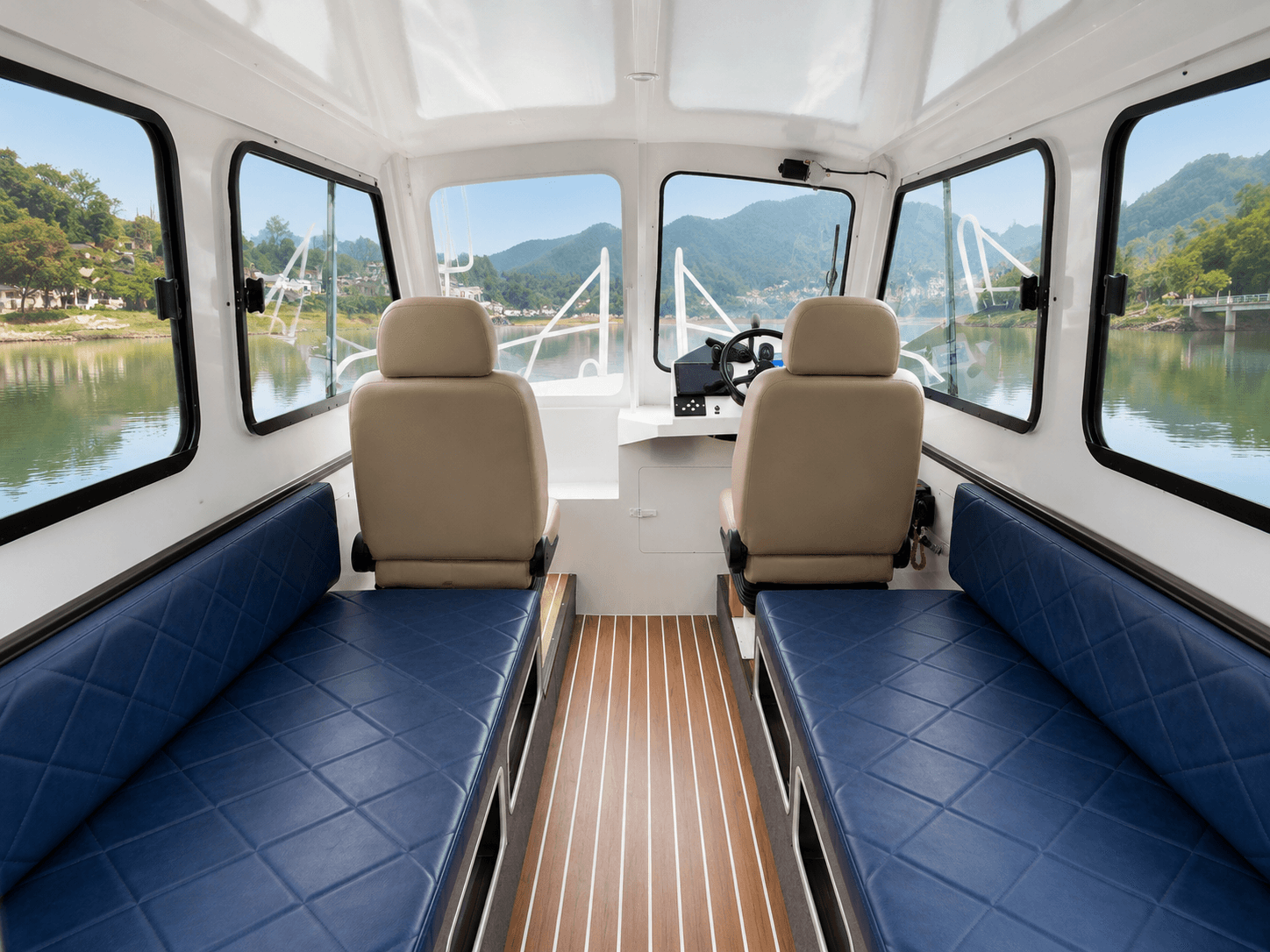

Gallery
