Engineering TransportEmergency RescueCrew Transport
Heavy-Duty · Long-Range · Flagship Presence
AL760Q Full-Cabin Boat
The AL760Q is a large high-performance aluminum workboat with outstanding loading capacity, excellent seaworthiness, and long-range performance. Suitable for personnel and cargo transport, emergency rescue command, and port operations support.
Nominal Length
7.50 m
Capacity
14 persons
Power
115–250 HP
Speed
20–25 kn
Specifications
- Hull Length
- 7.50 m
- Beam
- 2.5 m
- Hull Depth
- 1 m
- Bottom Plate Thickness
- 4 mm
- Side Plate Thickness
- 4 mm
- Transom Thickness
- 4 mm
- Capacity
- 14 persons
- Draft
- 0.3 m
- Power
- 115–250 HP
- Displacement
- 3.05 t
- Speed
- 20–25 kn
- Hull Material
- Aluminum Alloy（5052）
Structural Features

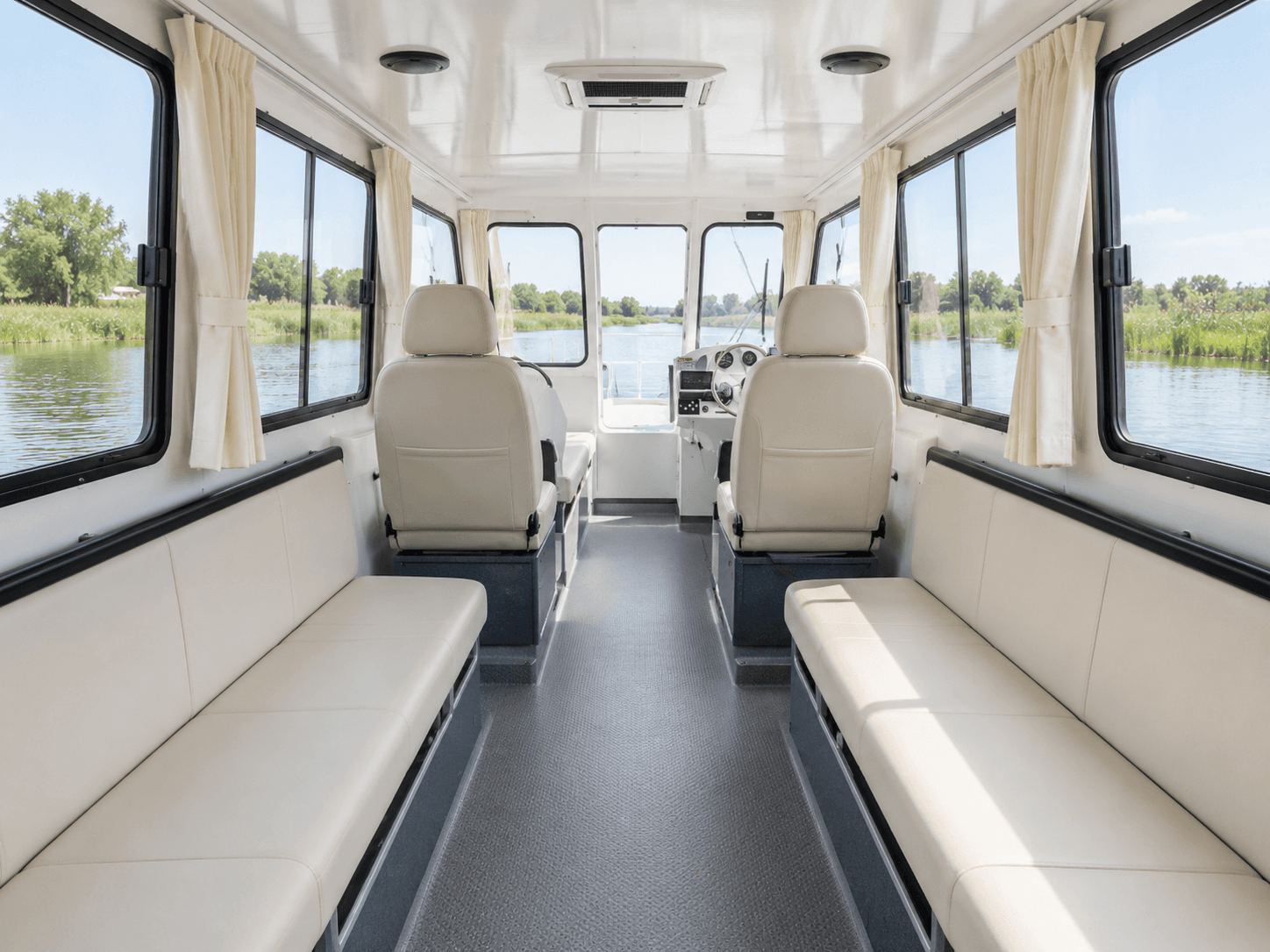

- Large cabin space for multiple personnel
- High-power outboard, stable speed at full load
- Fully enclosed wheelhouse with ventilation system
- Extra-large storage and equipment space
- Reinforced keel, excellent seakeeping
- Optional air conditioning, restroom comfort features
Gallery
