Twin-Hull Stability · Professional Pilotage

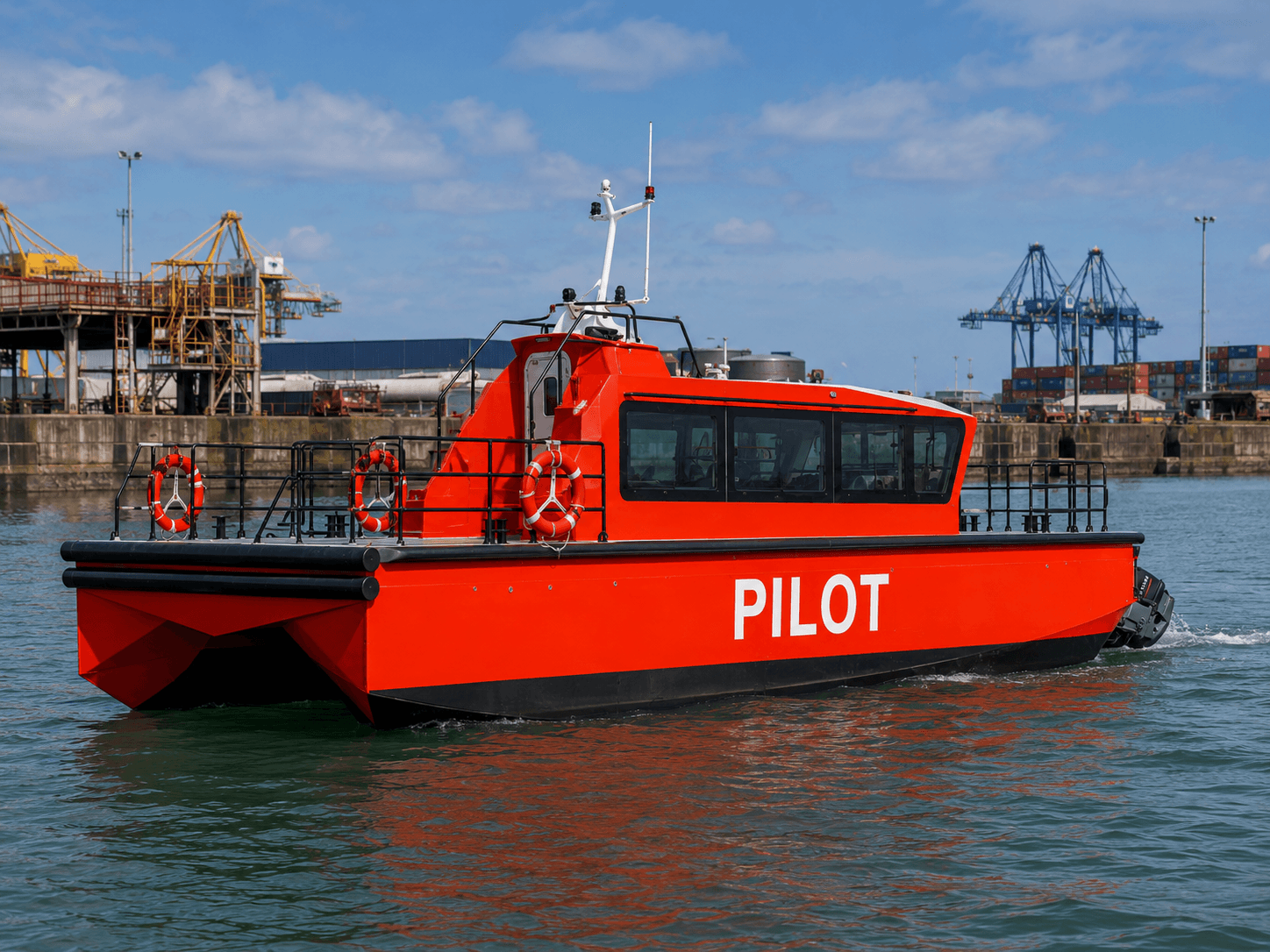

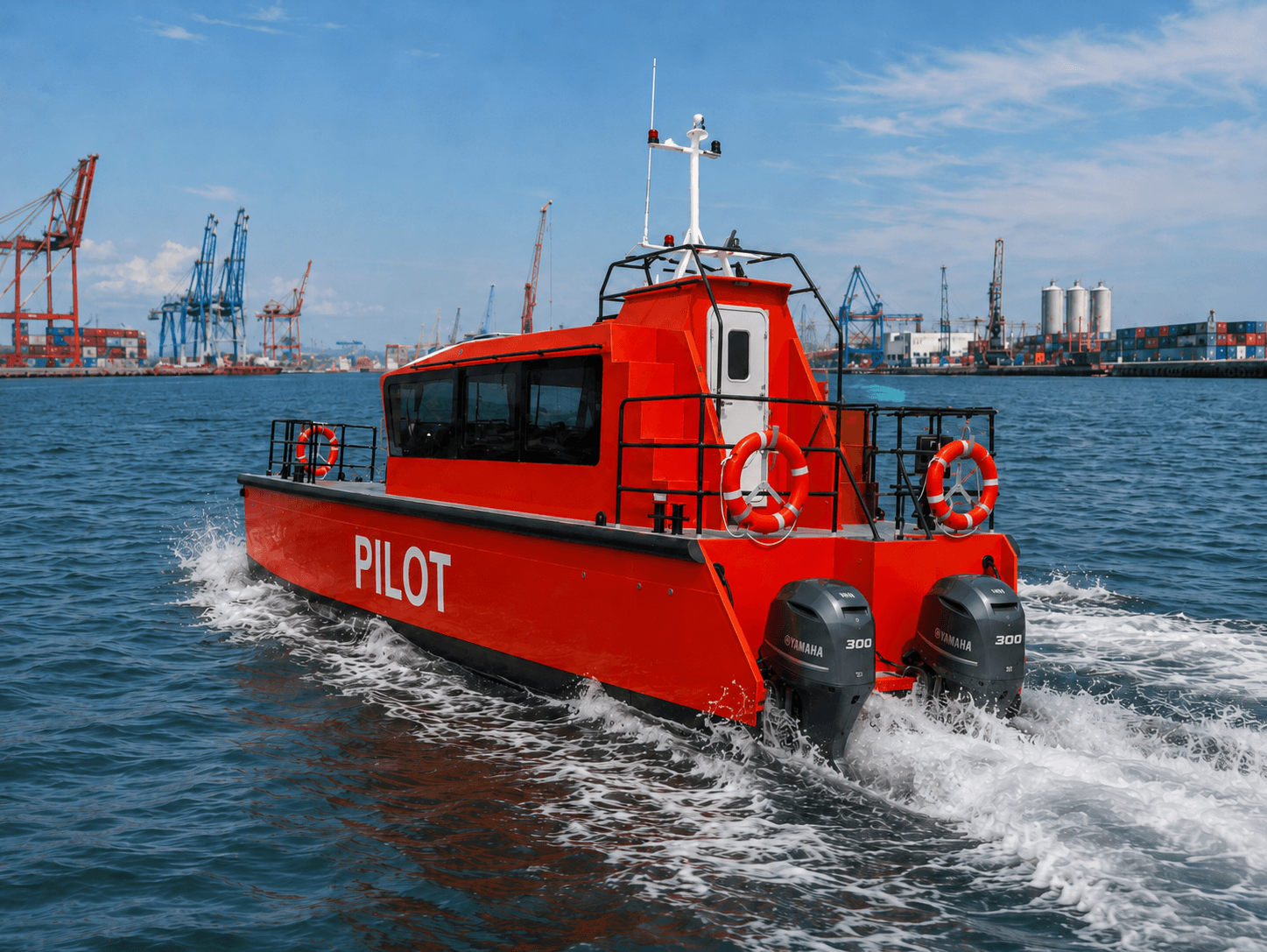

AL900 Catamaran Pilot Boat
The AL900 Catamaran Pilot Boat uses a twin-hull design for outstanding roll stability and deck space. Purpose-built for port pilotage, offshore operations, and water transport — the catamaran structure provides a stable working platform and excellent seakeeping.
Nominal Length
9.00 m
Capacity
10 persons
Power
85 HP × 2
Speed
17 kn
Specifications
- Hull Length
- 9.00 m
- Beam
- 3 m
- Hull Depth
- 1.53 m
- Bottom Plate Thickness
- 5 mm
- Side Plate Thickness
- 4 mm
- Transom Thickness
- 6–8 mm
- Capacity
- 10 persons
- Draft
- 0.55 m
- Power
- 85 HP × 2
- Displacement
- 1.8 t
- Speed
- 17 kn
- Hull Material
- Aluminum Alloy（5083）
Structural Features
- Catamaran hull design, excellent roll stability

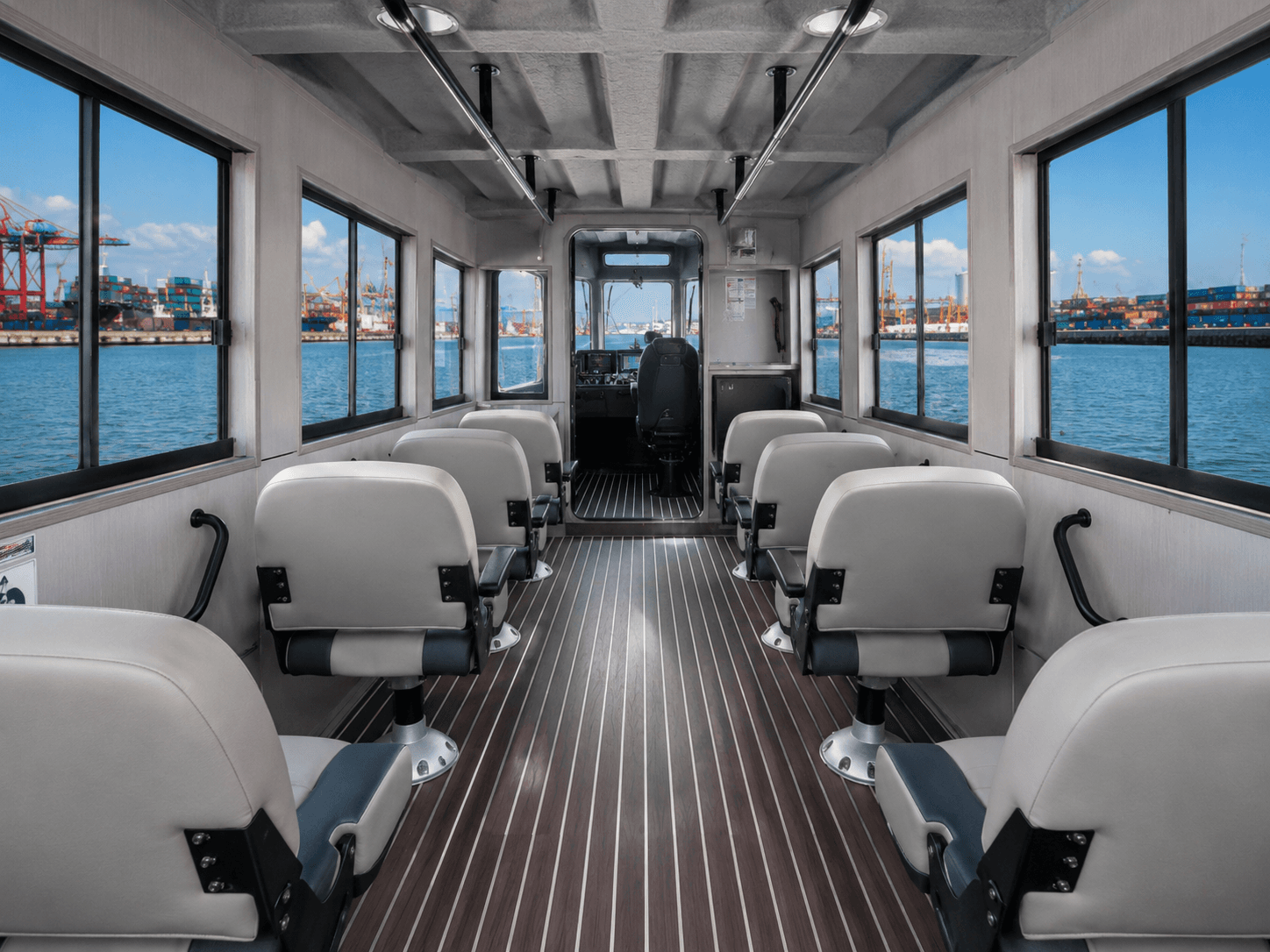

- Spacious deck for personnel and equipment
- Twin-engine configuration, ample power with safety redundancy

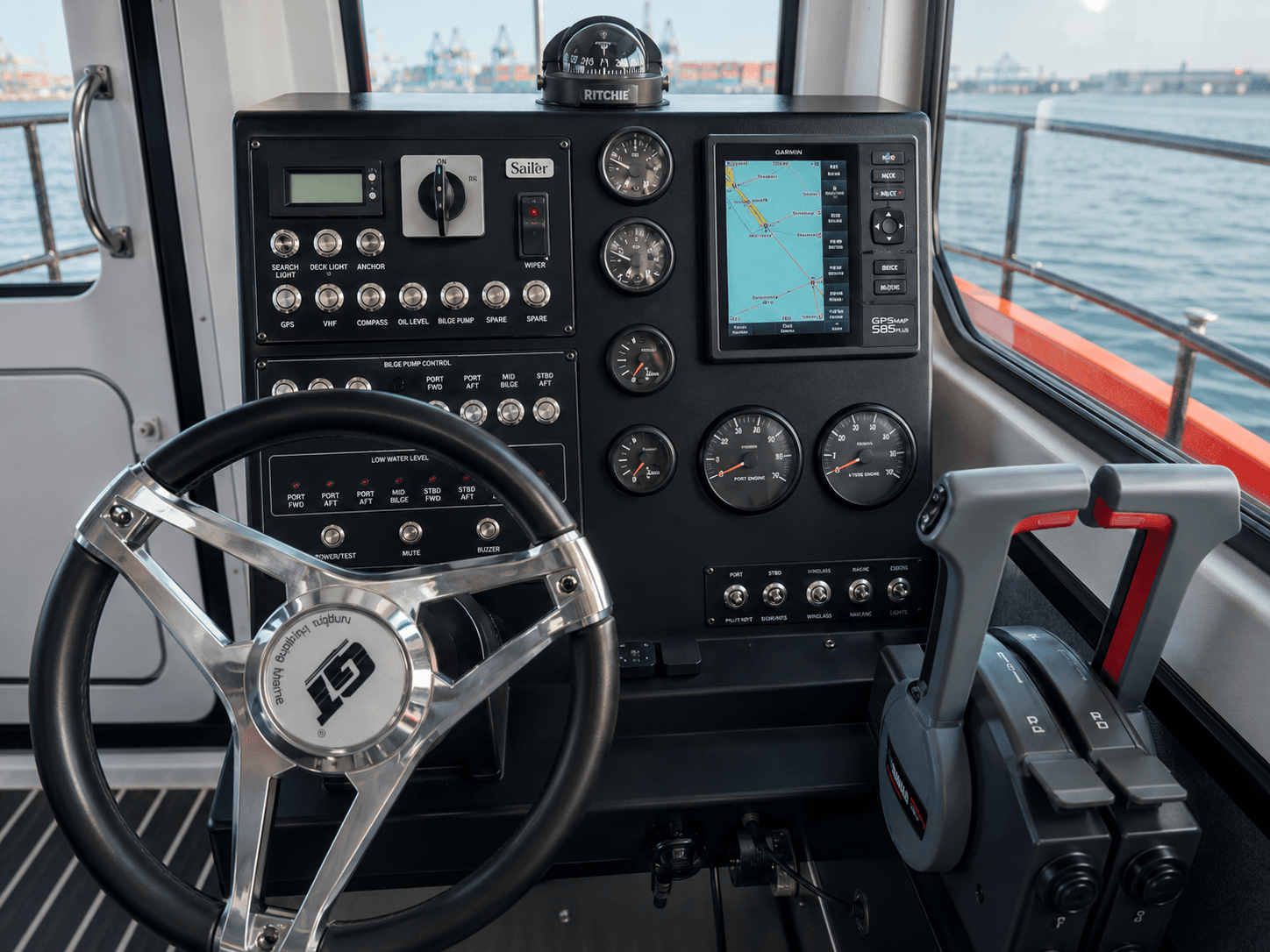

- Fully enclosed wheelhouse for all weather conditions
- Low-noise operation for extended offshore missions
Gallery
